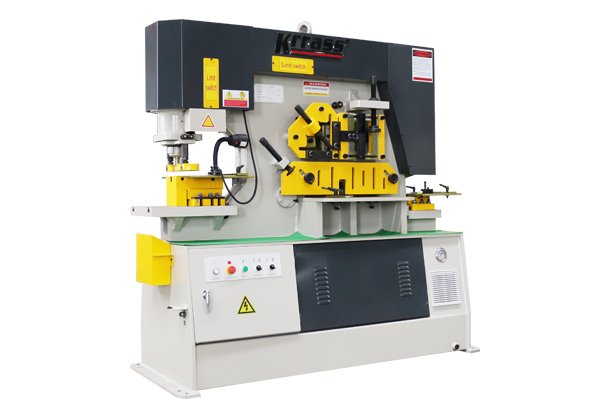

Ironworker Machine

General Features

This series of products are ideal equipment for cutting all kinds of angle steel, I-beam, U-shape steel, right angle or 45 degree angle steel.

Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.
Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.

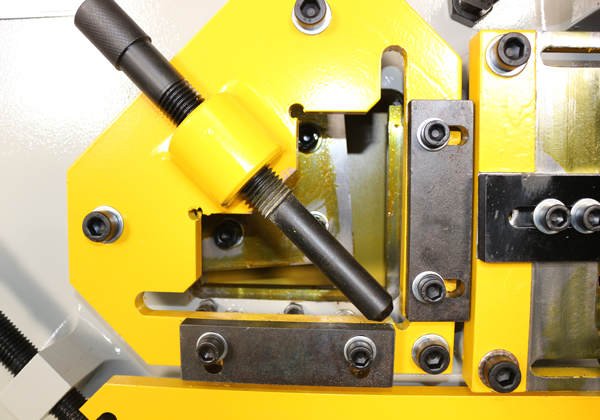

Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.

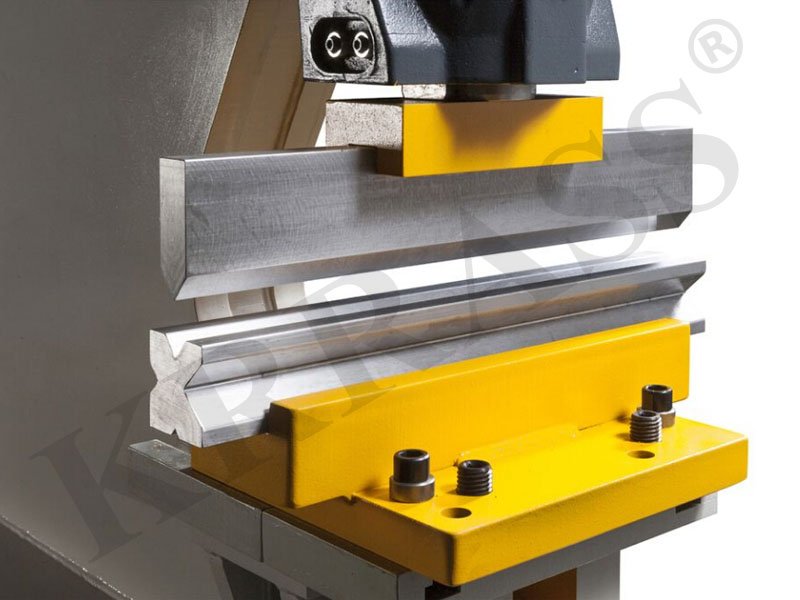

Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.

Standard Configuration

A set of punch and die(round hole)
A set of angle steel blade
A set of square and round bar blade
A set of shearing plate blade
A set of notching blade
2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time

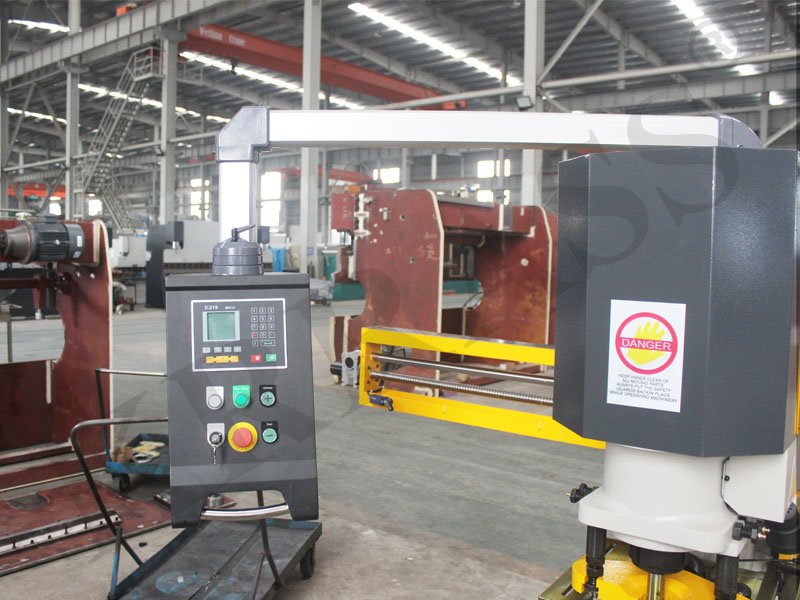

More efficient stroke-control functions of piston rod
Central lubricating system
Motor-driven rear stopper
Lighting devices for work
5 independent work-positions

Optional

Various toolings for different purposes
Square, oval, louver punch and die
Channel shear and I-beam shear
Conveyor table
Longer worktable
Worktable with linear guide

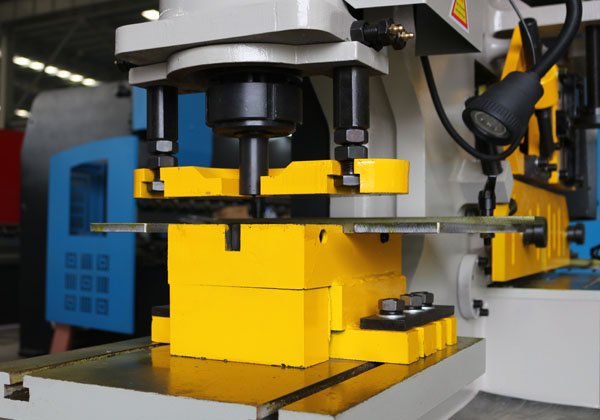

Punching Station

Large punching machine ares with removable front block,designing for multiple punching application. Standard machine with repeating work rules and guidelines for the punching table.

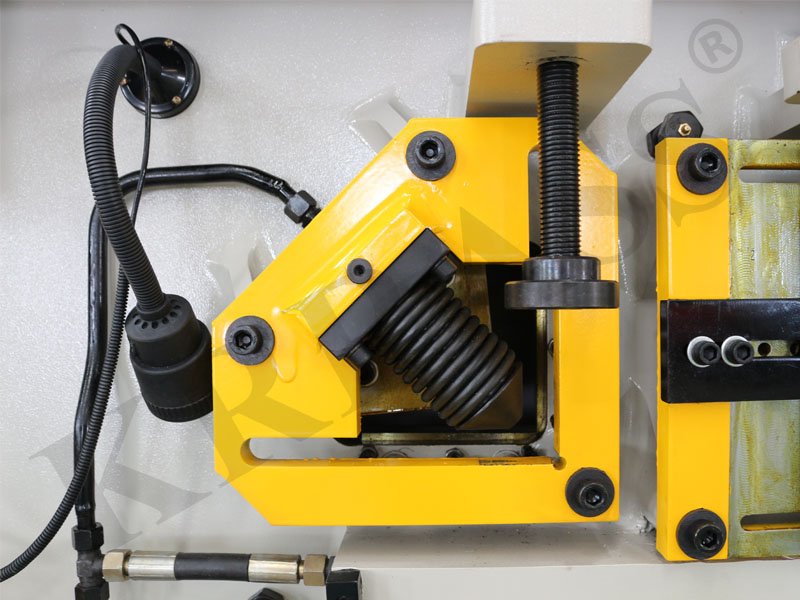

Angle steel cutting station

The machine standard is equipped with angle cutting station.

Proximate matter cutting station

Standard installation of channel steel cutting station
Option install I-steel, circle bar cutting tool

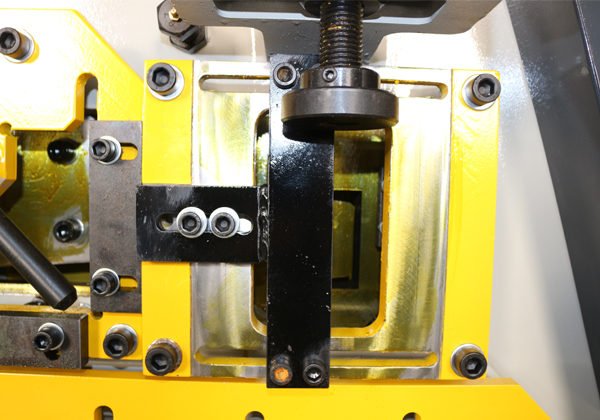

Shearing plate station

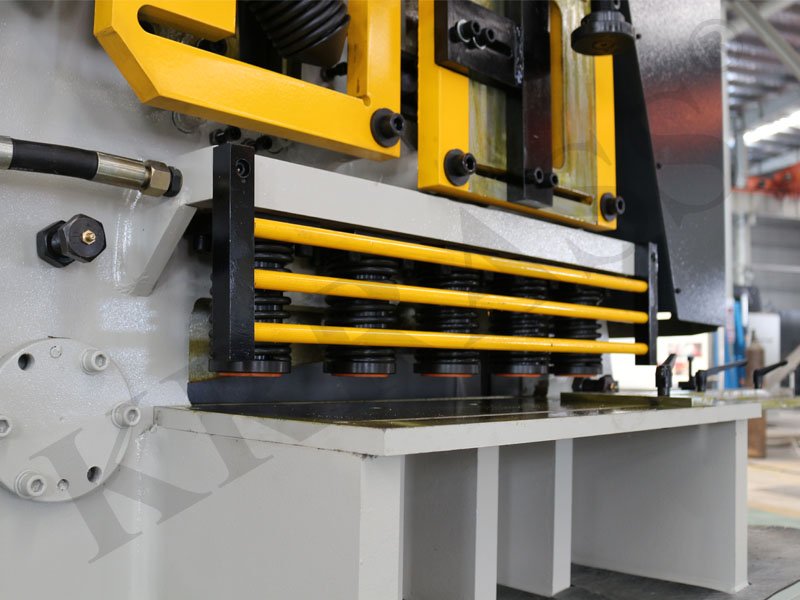

The cutting unit is equipped with simple and robust pressing device,the material that can be adjusted to any thickness within the machine cutting capacity. Shearing feed table with adjusting guide rail,which can precise feed. Adjustable guide plate to allow to cut or trim angle steel up to 45 degrees.

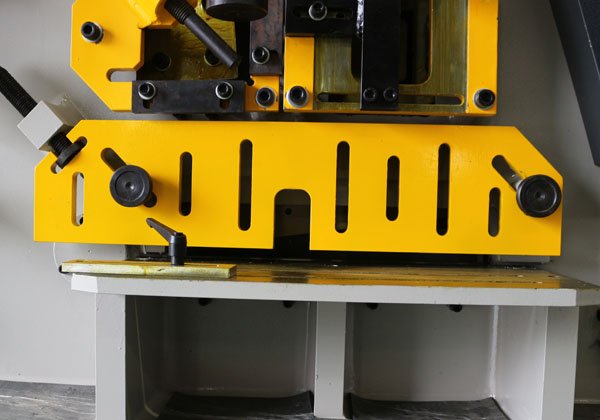

Cutting Gap station

The slot table standard is equipped with a rectangular slot table with adjustable rear block and it can repeatable positioning.

Optional Accessories

Bending Station

Shear plate automatic hydraulic clamping

Angle steel shear automatic clamping

Angle steel, channel steel, round steel automatic positioning shear

Optional equipment

Standard punching equipment

Standard cutting of O or A

Standard cutting of L 90°

Standard Cutting of flat bars

U and I profile cutting

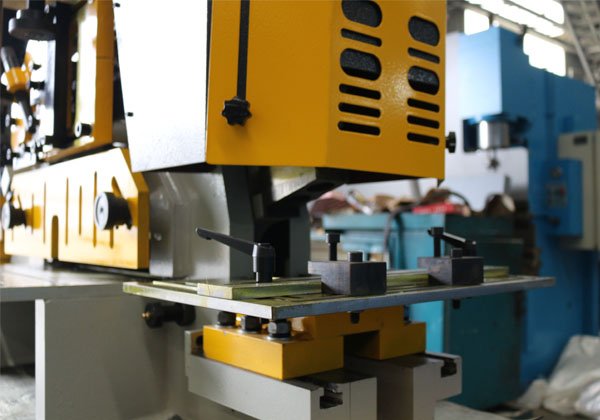

Triangular notching

Claw equipment

Tube notching

Punching unit UPN

Punching at the end of tube

Standard press brake

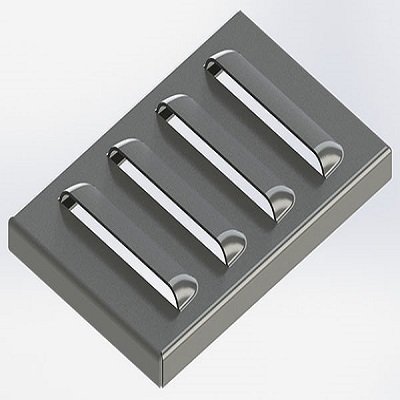

Louver punching

Technical Parameters

No.	Model	Unit	Q35Y-12	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
1	Punching pressure	T	35	60	90	120	160	200	250
2	Max.cutting thickness of steel plate	mm	12	16	20	25	30	40	50
3	Material strength	N/mm²	≤450	≤450	≤450	≤450	≤450	≤450	≤450
4	Angle of shear	(°)	7	7	8	8	8	8	8
5	Flat bar shearing	mm	12×160 6×300	16×250 8×400	20×330 10×480	25×330 16×600	30×335 20×600	40×335 30×600	50×300 30×750
6	Max.length of cylinder stroke	mm	35	80	80	80	80	100	100
7	Trips frequency	times/min	10-18	11-20	12-20	8-18	6-16	6-16	6-12
8	Depth of throat	mm	115	300	355	400	600	530	600
9	Punch depth	mm	12	16	20	25	28	35	40
10	Max.punching diameter	mm	25	25	30	35	38	40	45
11	Motor Power	KW	4	5.5	7.5	11	15	18.5	18.5
12	Overall diamensions(LxWxH)	mm	950x550x1800	1740x810x1830	1950x900x1950	2355x960x2090	2800x1050x2450	2900x1100x2500	3200x1440x2500
14	Round Bar		35	45	50	60	65	70	80
15	Square Bar		30X30	40×40	50×50	50×50	55×55	60×60	65×65
16	Equal Angle	90°Shearing	86x86x8	120x120x12	140x140x12	160x160x14	180x180x16	200x200x18	200x200x18
17	Equal Angle	45°Shearing	It needs to be customized	50x50x5	70x70x10	60x60x6	80x80x8	80x80x10	100x100x10
18	T-Bar	90°Shearing		125x125x12	140x140x12	160x160x14	180x180x16	200x200x18	200x200x18
19	T-Bar	45°Shearing		60x60x8	70x70x10	80x80x10	80x80x10	100x100x10	120x120x12
20	I－beam			120x74x5	160x88x6	200x102x9	280x124x10.5	300x130x13	320x130x13
21	Channel			120x53x5.5	160x63x6.5	200x75x9	280x86x11.5	300x89x11.5	320x92x12
