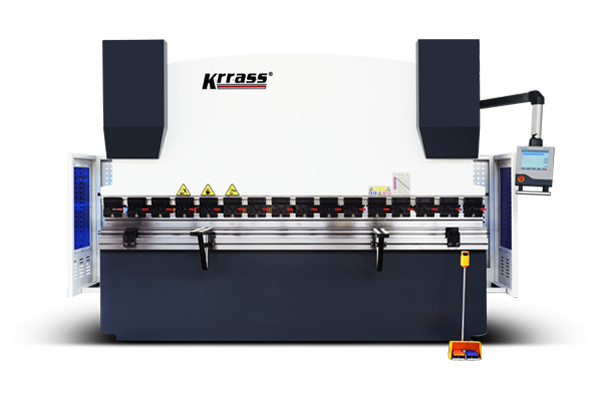

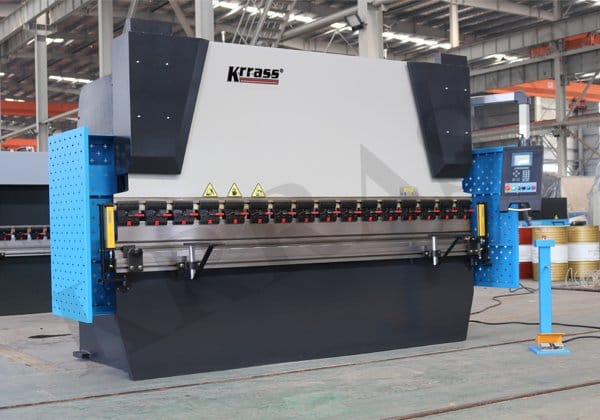

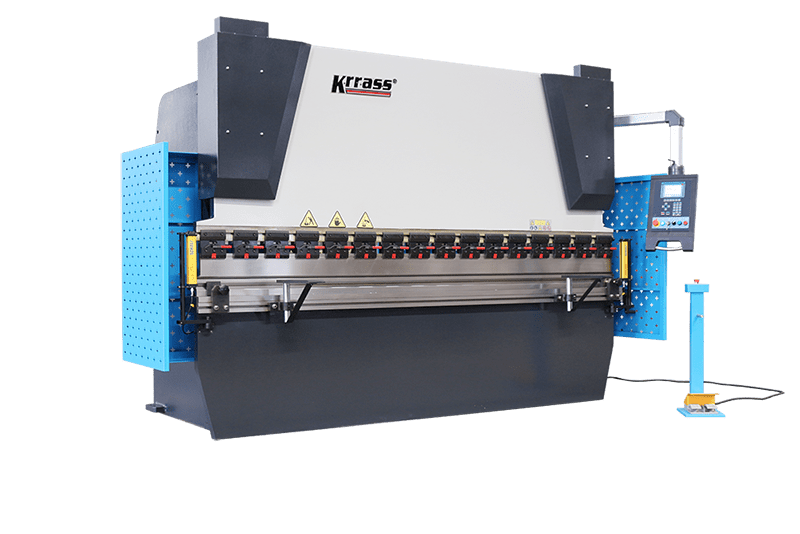

NC Press Brakw with E300 Control

NC Press Brake E300 Controller

Model:WC67K
Controller:Estun E300 System
Copabilities:30Ton-1600 — 600Ton/8000
Axes:Y axis ,X axis

Inquiry
  • Description

Main Features

  1. Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical crowning device, ensuring bending precision.
  2. Hydraulic synchronous control and Estun CNC programmable controller guarantee precise repeatability and easy use.
  3. Integrated hydraulic system (Germany Bosch Rexroth) can automatically switch to slow bending in quick way.
  4. X ,Y‐axis realize accurate positioning function through CNC E300 controller programming ,servo drive and servo motor.
  5. Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
  6. Optimal parameter ratio and optimal core configuration guarantee stable performance and more convenient operation.
  7. WC67K standard single-axis back gauge system, single-axis bending angle system and V-axis compensation function any type irregular work pieces can be done with suitable die.

Main Accessories

  • Estun E300 double-servo controller
  • Controller controls and adjusts Y-axis and X-axis

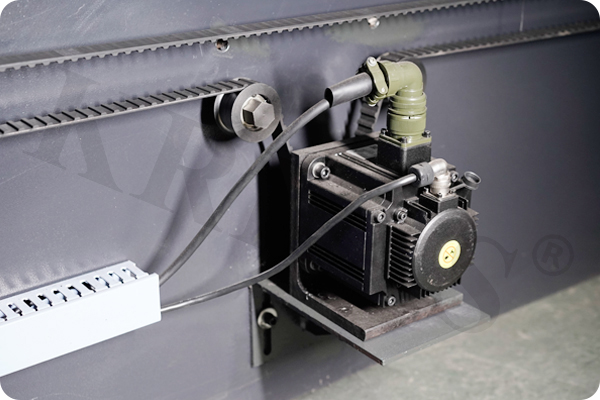

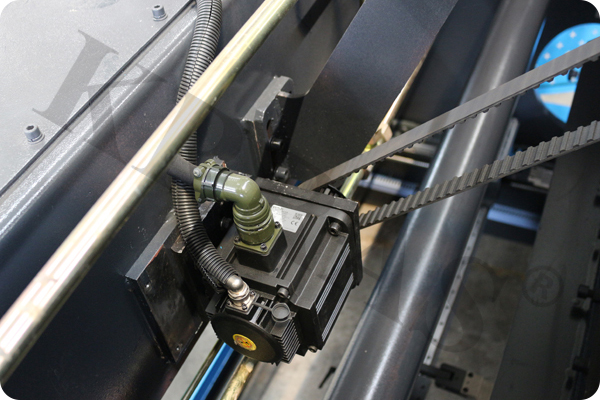

  • Servo drive and control positioning of X-axis and Y-axis
  • Use HIWIN ball screw and linear guide rail, accuracy 0.05mm
  • Front material supporter
  • Germany Bosch Rexroth hydraulic valve block
  • Germany EMB oil tube connector
  • Germany Siemens main motor
  • France Schneider electrics
  • Hydraulic & electrical overload protection
  • Upper and lower dies(86°, R0.6mm, material: 42CrMo)

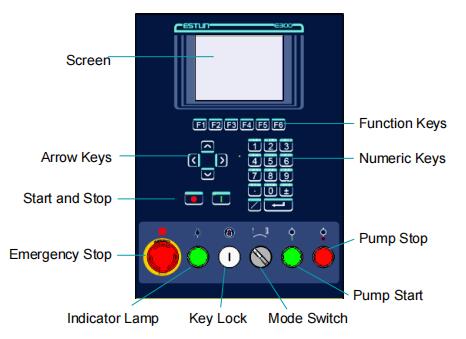

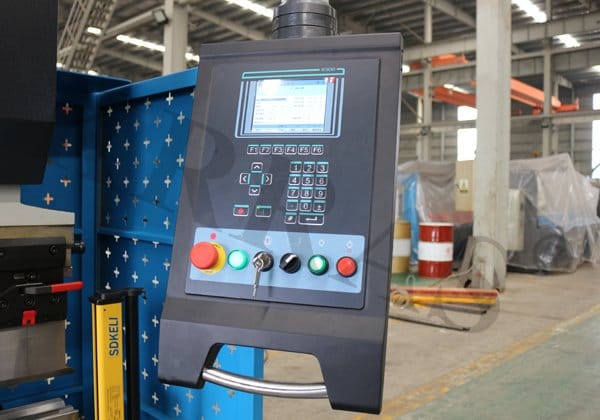

Estun E300 NC Press Brake Controller

  • 4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
  • Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
  • The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
  • Optional hydraulic or mechanical to control the C-axis.
  • Program in absolute value or angle.
  • Materials and die informations are programable.
  • Language setting and unit setting.

Safety Standard

  • EN 12622:2009 + A1:2013
  • EN ISO 12100:2010
  • EN 60204-1:2006+A1:2009
  • Front Finger protection ( safety light curtain )
  • South Korea KACON pedal switch ( safety grade 4 )
  • Back metal safety fence, CE standard
  • Safety relay monitor pedal switch, safety protection
  • Safety standard ( 2006/42/EC)

Standard Configuration

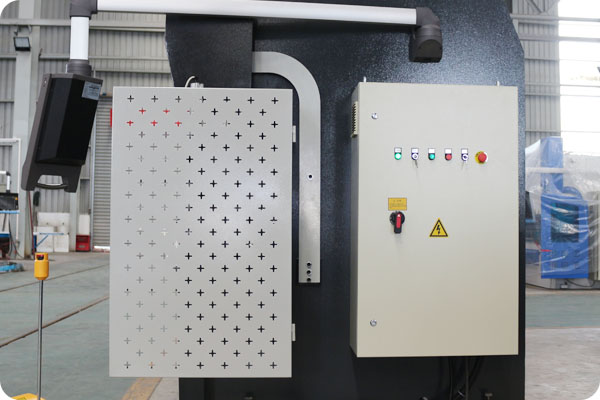

CE Standard Electrical System

Schneider Electrics - France

Siemens Motor

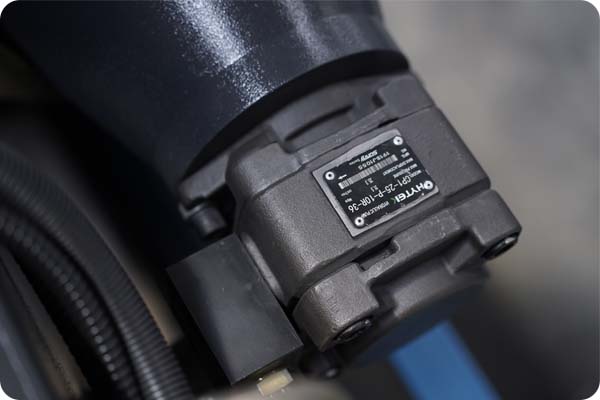

Sunny Oil Pump-GermanyUSA

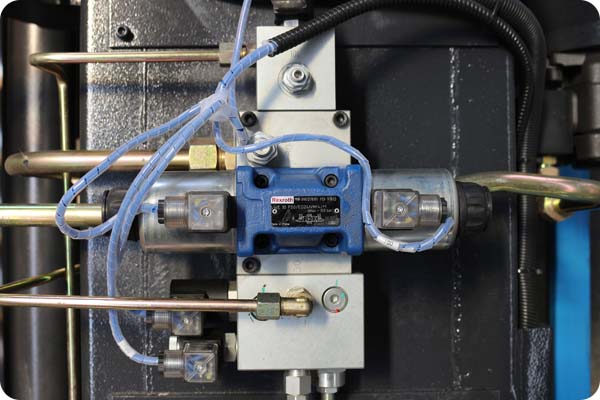

Bosch Rexroth Valve -Germany

KRRASS Pedal Switch

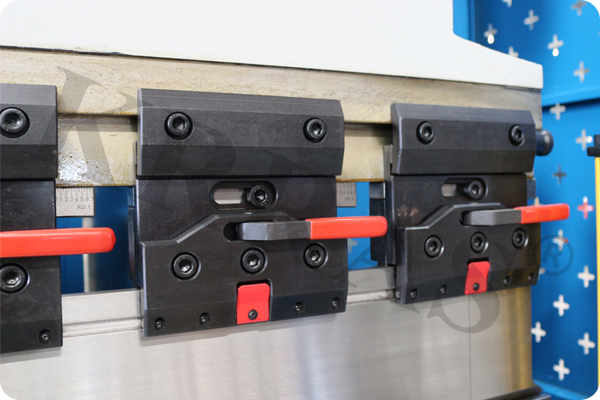

Quick clamps

Double Linear Guide Back Gauge Beam

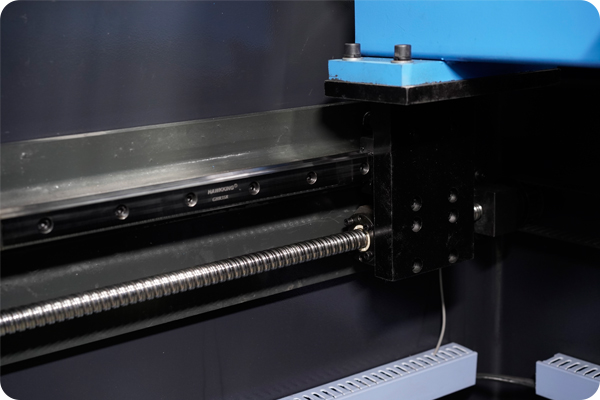

Backgauge use ball screw and linear guide rail

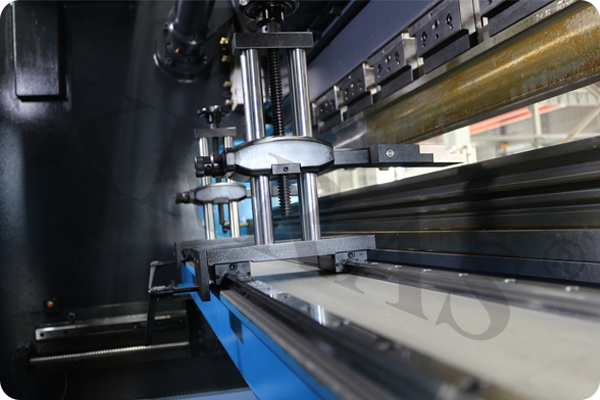

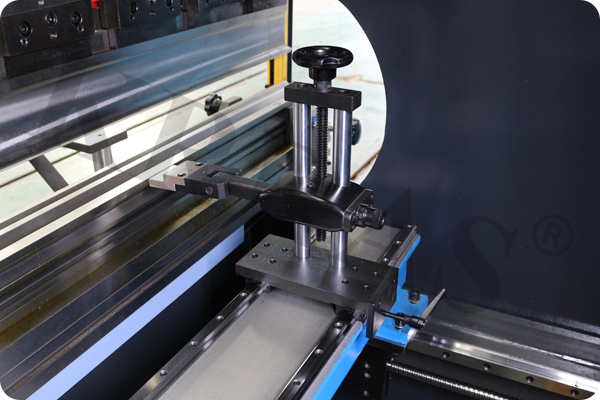

Hight-precision fine-tuning back finger stopper

X Axis is driven by stepper motor and invetrer

Y Axis is driven by stepper motor and invetrer

E300 Controller Press Brake Operation

Matters needing attention when bending:

A. The bending force of the workpiece must not be greater than the nominal force of the equipment. When working, one person should be in a unified command, so that the operator and the feeding and suppressing personnel should cooperate closely to ensure that the cooperating personnel can send out the bending signal in a safe position.

B. When bending the sheet, it should be placed in the middle of the equipment. The equipment should not be subjected to unilateral force, so as not to affect the accuracy of the workpiece and the equipment.

Technical Parameter

Model Bending Pressure
(kn)
Bendling Lengthmm) Vertical Column Distance (mm) Throat Depth(mm) Slider Stroke
(mm)
Max. opening Height
(mm)
X-axis Max. Distance
(mm)
Main Motor
(kw)
Length*Width*Height(mm) Weight
(T)
30T/1600 300 1600 950 230 100 320 300 3 1800*1200*1620 2000
40T/1600 400 1600 950 230 100 320 300 3 1800*1200*1820 2500
40T/2200 400 2200 1850 230 100 320 500 5.5 2200*1200*1900 2750
40T/2500 400 2500 2000 230 100 320 500 5.5 2500*1200*1900 3000
50T/2500 500 2500 2000 230 100 320 500 5.5 2500*1200*2000 3400
63T/2500 630 2500 2000 250 100 320 500 5.5 2500*1300*2210 4000
63T/3200 630 3200 2700 250 100 320 500 5.5 3200*1300*2210 4800
80T/2500 800 2500 2000 300 100 320 500 7.5 2500*1400*2300 5000
80T/3200 800 3200 2700 320 100 350 500 7.5 3200*1500*2300 6000
80T/4000 800 4000 3350 320 100 350 500 7.5 4000*1500*2400 7000
100T/2500 1000 2500 1990 320 120 350 500 7.5 2500*1600*2400 6000
100T/3200 1000 3200 2700 320 150 400 500 7.5 3200*1600*2600 6800
100T/4000 1000 4000 3350 320 150 400 500 7.5 4000*1600*2600 8000
125T/3200 1250 3200 2650 320 150 400 500 11 3200*1600*2600 7000
125T/4000 1250 4000 3350 320 150 400 500 11 4000*1600*2600 8500
160T/3200 1600 3200 2580 320 200 460 500 11 3200*1700*2700 10000
160T/4000 1600 4000 3350 320 200 460 500 11 4000*1700*2800 11000
160T/5000 1600 5000 3900 320 200 460 500 11 5000*1900*3100 13500
160T/6000 1600 6000 4900 320 200 460 500 11 6300*1900*3200 18500
200T/3200 2000 3200 2480 320 200 460 500 11 3200*1950*2800 11000
200T/4000 2000 4000 3350 320 200 460 500 11 4000*1950*2800 12500
200T/5000 2000 5000 3900 320 200 460 500 11 5000*1950*3000 14000
200T/6000 2000 6000 4900 320 200 460 500 11 6000*1950*3300 20000
250T/3200 2500 3200 2450 400 250 590 500 18.5 3250*2000*3200 18500
250T/4000 2500 4000 2900 400 250 590 500 18.5 4000*2000*3400 20000
250T/5000 2500 5000 3900 400 250 590 500 18.5 5000*2000*3400 23000
250T/6000 2500 6000 4900 400 250 590 500 18.5 6000*2000*3400 27000
300T/3200 3000 3200 2450 400 250 590 500 22 3200*2000*3450 20500
300T/4000 3000 4000 2900 400 250 590 500 22 4000*2000*3450 22000
300T/5000 3000 5000 3900 400 250 590 500 22 5000*2000*3450 25000
300T/6000 3000 6000 4900 400 250 590 500 22 6000*2000*3450 28500
400T/3200 4000 3200 2400 400 250 590 500 30 3200*2180*3400 22500
400T/4000 4000 4000 2900 400 250 590 500 30 4000*2180*3400 25000
400T/5000 4000 5000 3900 400 250 590 500 30 5000*2180*3500 29000
400T/6000 4000 6000 4900 400 250 590 500 30 6000*2180*3800 34000
500T/5000 5000 5000 3900 400 250 590 500 45 5050*3500*3700 42000
500T/6000 5000 6000 4900 400 320 590 500 45 6050*3500*3700 54000
600T/4000 6000 4000 2900 400 320 590 500 55 4050*4500*3700 44000
600T/6000 6000 6000 4900 400 320 590 500 55 6050*4500*3700 60000
