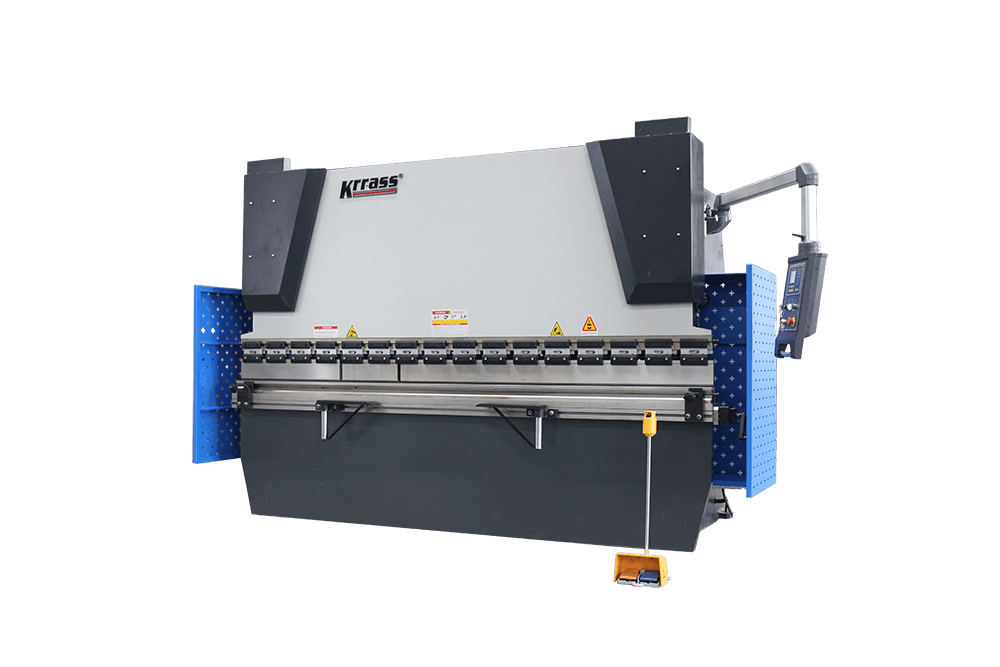

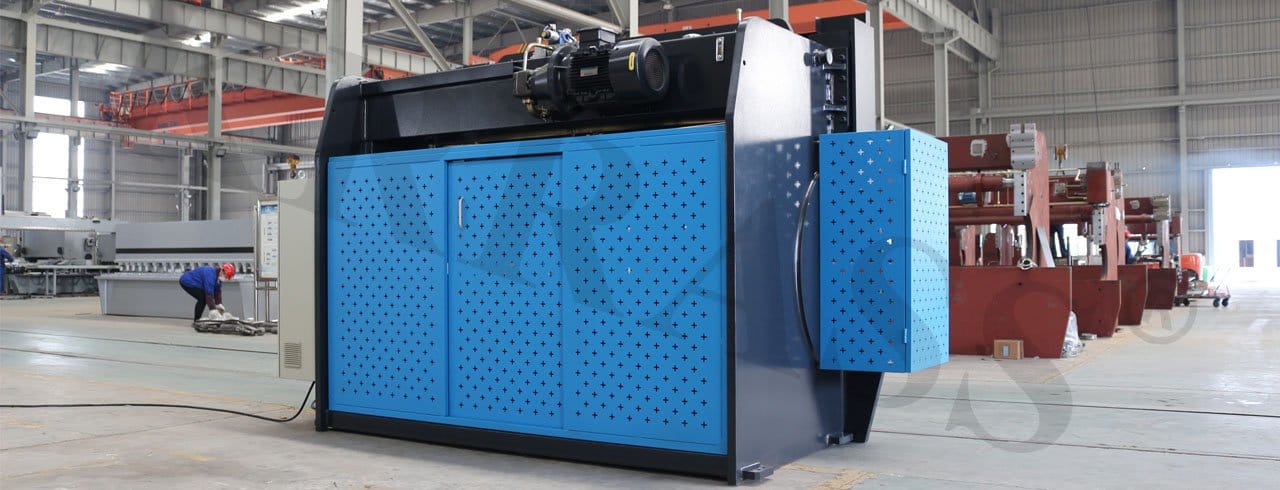

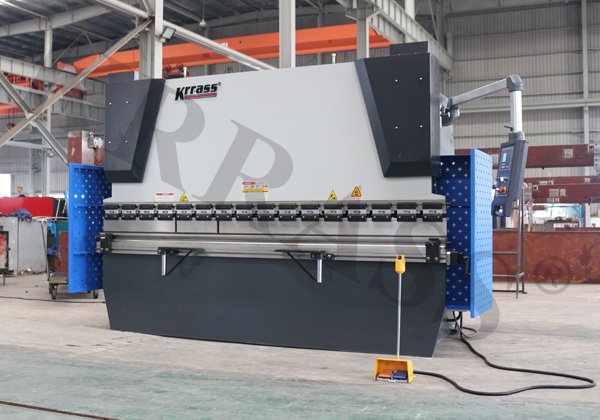

Hydraulic Press Brake With E21 System

General Features

  1. Overall welding the front workbench vertical plates and machine frame ensures there are no seam between vertical plates and bilateral wall plates.
  2. Adopt Estun E21 controller cantilever referring to man-machine engineering design, with simple NC operation surface, improving the operational accuracy and comfortability.
  3. Left and right safety fences are used to protect the worker’s safety.

Min Features:

  1. The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical crowning device, to achieve precision bending.
  2. Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease use.
  3. Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.
  4. X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.
  5. Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.
  6. The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.
  7. WC67K standard single-axis back gauge system and single-axis bending angle system, you can choose to add the V-axis crowning function, and select the appropriate mold to bend complex shape workpieces easily.

Standard Configuration

● Estun E21 NC control system
● Y-axis and X-axis system control adjustment
● Delta frequency converter controls the positioning of X axis and Y axis
● Using HIWIN ball screw and light bar to ensure the accuracy of 0.05mm.
● Front holder support
● Germany Bosch Rexroth hydraulic valve block
● Germany EMB oil tube connector
● Germany Siemens main motor
● France Schneider Electric
● Hydraulic and electrical overload protection
● Top and bottom dies (86 °, R0.6mm, material: 42CrMo)

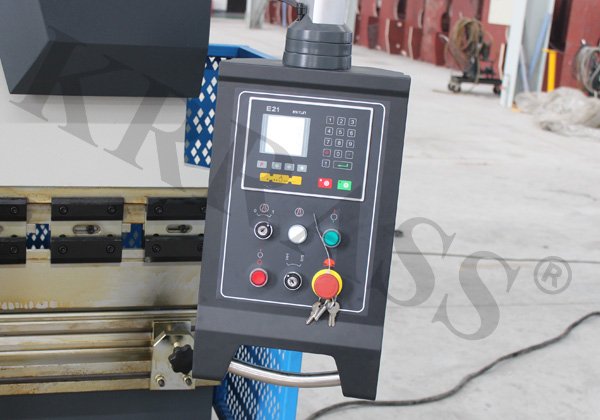

NC controller

  • Backgauge control
  • Control the common motor or inverter
  • Intelligent positioning
  • Holding pressure unloading time setting
  • Workpiece counting
  • 40 programs stored, 25 steps per program
  • Unilateral positioning
  • Concession function
  • One-key backup / restore
  • mm / inch
  • Chinese / English

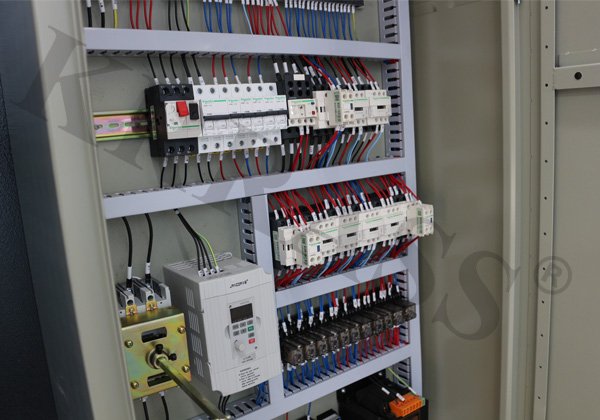

Electrical box

  • Stable France Schneider electrics, Taiwan DELTA frequency converter to prevent X-axis swinging when positioning
  • Electric cabinet with function of opening door to cut off power

Main motor

  • Use Siemens motor to ensure the machine service life and lower the working noise.

Oil Pump

Use USA SUNNY oil pump to ensure the pump service life and lower the working noise.

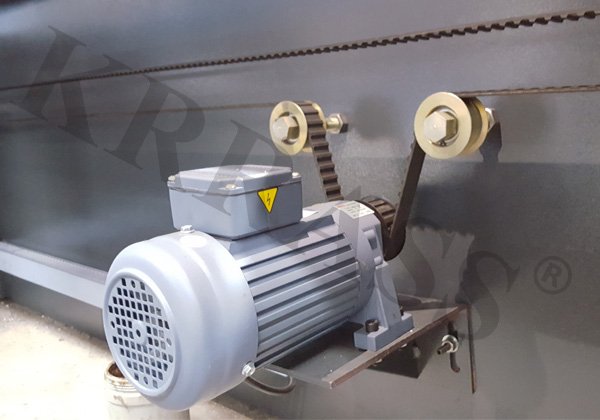

backgauge

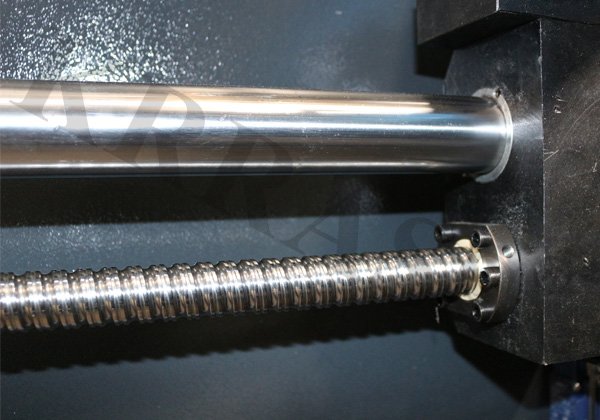

High precise backgauge is equipped with fine ball screw and polished rod

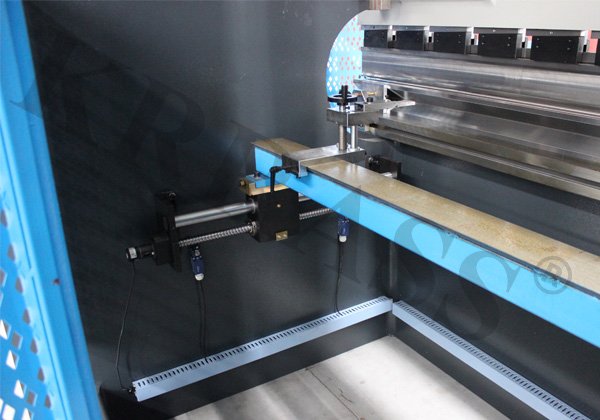

X axis beam

Backgauge adopts horizontal installation shell structure with high stability, single shell double guide rail, high precision, X-axis drive, automatic CNC system

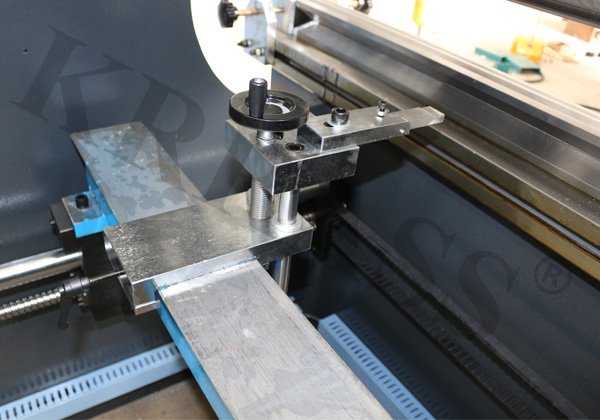

Rear finger

Standard configuration backgauge is on X-axis, manually adjust R-axis, stop finger can move around along the double track

X Axis

X-axis adopting high-performance electric drive, guaranteeing positioning accuracy, unique synchronous transmission mechanism design, stable and reliable

Y Axis

Y-axis driven by servo motor to ensure the positioning accuracy, unique designed synchronous transmission mechanism, reliable and stable.

Hydraulic system

  • Use USA PARKER/ Japan NOK Sealing ring to improve the oil cylinder service life and ensure long term use without leakage.
  • Germany Bosch Rexroth integrated hydraulic system, hydraulic transmission, balance and reliable, integrated hydraulic system design can significantly minimize the trouble caused by hydraulic oil leakage.

Clamps

  • Mechanical quick clamps of upper die is more safe when changing the die

Press Brake Die

  • Multi-V bottom die with different opening and dimensions accessible, die-changing is convenient, and can meet general plate processing demands with high cost performance.
  • The Press Brake dies are made by 42CrMo steel, and the temperature of heat treatment up to 42°, ensuring the dies service life.

Workbench

  • With double T-shaped channel, the workbench is convenient for segmented die installation.
  • Movable fine polished workbench ensures the workbench surface flatness.

Front supporter

  • Front supporter, simple structure, powerful function, supporting up/down adjustment, and can move along T-shaped channel in horizontal direction.

Foot pedal switch

South Korea KACON pedal switch, improving the service life and operational sensitivity.

Potional

  • Mechanical Crowning
  • Front Photoelectric Protection
  • Back Photoelectric Protection

Manual crowning

Photoelectric protection

Potional Segment Die

  • Press Brake segmented die or others are avaliable for your choice

Gooseneck die

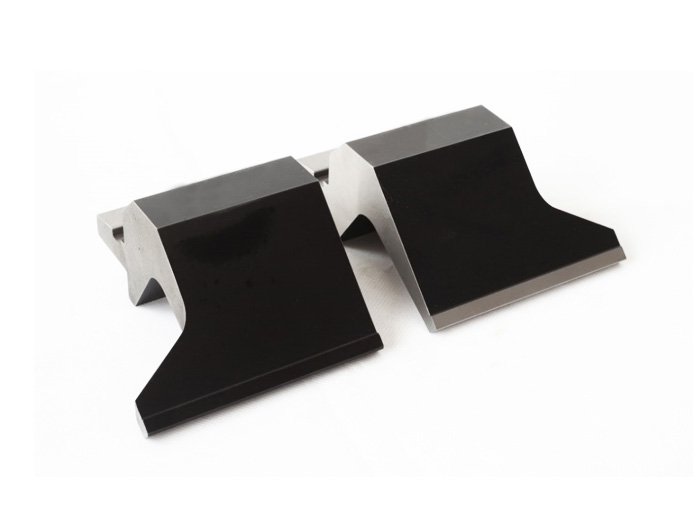

Acute Knife

Double V Die

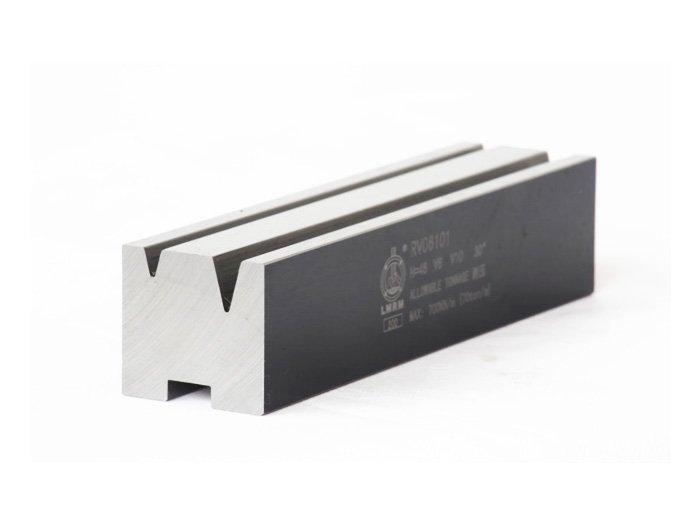

Multi-V Die

Technical Parameters

Model Bending Pressure (KN) Bendling Length (mm) Uprights Distance (mm) Throat Depth (mm) Slider Stroke (mm) Max. Opening Height (mm) Max. X-axis Distance (mm) Main Motor (KW) Length*Width*Height (mm) Weight (kg)
30T/1600 300 1600 950 230 100 320 300 3 1800*1200*1620 2000
40T/1600 400 1600 950 230 100 320 300 3 1800*1200*1820 2500
40T/2200 400 2200 1850 230 100 320 500 5.5 2200*1200*1900 2750
40T/2500 400 2500 1850 230 100 320 500 5.5 2500*1200*1900 3000
50T/2500 500 2500 1850 230 100 320 500 5.5 2500*1200*2000 3400
63T/2500 630 2500 1900 250 100 320 500 5.5 2500*1300*2210 4000
63T/3200 630 3200 2560 250 100 320 500 5.5 3200*1300*2210 4800
80T/2500 800 2500 1990 300 100 320 500 7.5 2500*1400*2300 5000
80T/3200 800 3200 2560 320 100 350 500 7.5 3200*1500*2300 6000
80T/4000 800 4000 3200 320 100 350 500 7.5 4000*1500*2400 7000
100T/2500 1000 2500 1990 320 120 350 500 7.5 2500*1600*2400 6000
100T/3200 1000 3200 2600 320 150 400 500 7.5 3200*1600*2600 6800
100T/4000 1000 4000 3200 320 150 400 500 7.5 4000*1600*2600 8000
125T/2500 1250 2500 1990 320 150 400 500 11 2500*1600*2600 6000
125T/3200 1250 3200 2600 320 150 400 500 11 3200*1600*2600 7000
125T/4000 1250 4000 3200 320 150 400 500 11 4000*1600*2600 8500
160T/2500 1600 2500 1990 320 200 460 500 11 2500*1700*2700 8800
160T/3200 1600 3200 2580 320 200 460 500 11 3200*1700*2700 10000
160T/4000 1600 4000 2900 320 200 460 500 11 4000*1700*2800 11000
160T/5000 1600 5000 3900 320 200 460 500 11 5000*1900*3100 13500
160T/6000 1600 6000 4900 320 200 460 500 11 6300*1900*3200 18500
200T/2500 2000 3200 1990 320 200 460 500 11 3200*1950*2800 10000
200T/3200 2000 3200 2480 320 200 460 500 11 3200*1950*2800 11000
200T/4000 2000 4000 2900 320 200 460 500 11 4000*1950*2800 12500
200T/5000 2000 5000 3900 320 200 460 500 11 5000*1950*3000 14000
200T/6000 2000 6000 4900 320 200 460 500 11 6000*1950*3300 20000
250T/3200 2500 3200 2450 400 250 590 500 18.5 3250*2000*3200 18500
250T/4000 2500 4000 2900 400 250 590 500 18.5 4000*2000*3400 20000
250T/5000 2500 5000 3900 400 250 590 500 18.5 5000*2000*3400 23000
250T/6000 2500 6000 4900 400 250 590 500 18.5 6000*2000*3400 27000
300T/3200 3000 3200 2450 400 250 590 500 22 3200*2000*3450 20500
300T/4000 3000 4000 2900 400 250 590 500 22 4000*2000*3450 22000
300T/5000 3000 5000 3900 400 250 590 500 22 5000*2000*3450 25000
300T/6000 3000 6000 4900 400 250 590 500 22 6000*2000*3450 28500
400T/3200 4000 3200 2400 400 250 590 500 30 3200*2180*3400 22500
400T/4000 4000 4000 2900 400 250 590 500 30 4000*2180*3400 25000
400T/5000 4000 5000 3900 400 250 590 500 30 5000*2180*3500 29000
400T/6000 4000 6000 4900 400 250 590 500 30 6000*2180*3800 34000
500T/4000 5000 4000 2900 400 250 590 500 45 4050*3500*3700 36000
500T/5000 5000 5000 3900 400 250 590 500 45 5050*3500*3700 42000
500T/6000 5000 6000 4900 400 320 590 500 45 6050*3500*3700 54000
