Open-type Fiber Laser Cutting Machine

RAS-3015A

TECHNICAL PARAMETERS

3000*1500mm (optional)
Processing area

500w-1500w
Laser power

1100m/min
Complex-axis running speed

1.5G
Max. acc. speed

±0.05mm/m
Positioning accuracy

±0.05mm
Reposition accuracy

3500kg
Whole machine weight

4850*2750*1700mm
Machine dimensions

Standard Configuration

Laser Head : Raytools Manual focus

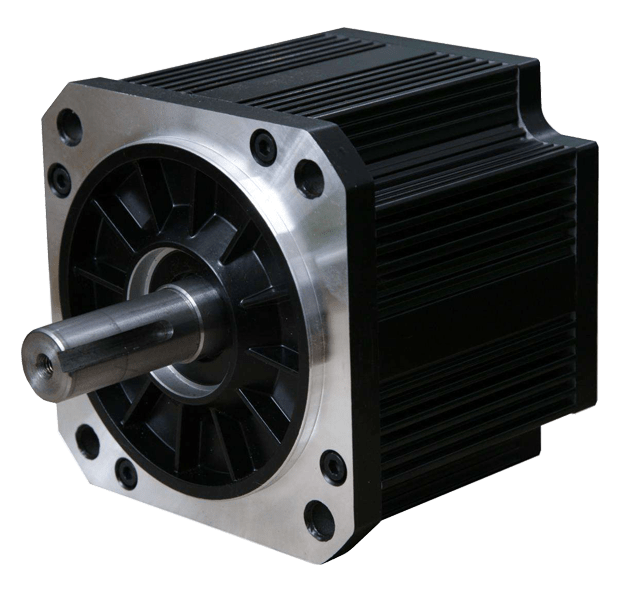

Servo Motor : Fuji Japan
Servo driver : Fuji Japan
Slideway : Hiwin TAIWAN
Rack : YYC TAIWAN
Gear :YYC TAIWAN
Reducer : Shimpo Japan
Control system : Cypcut FSCUT 1000
Proportional valve : Japan SMC
Electrical : France Schneider

The RAS-3015A is popular with small, start up users due to its open structure, easy operation and high cost performance. Customizable size: 4m×1.5m, 4m×2m, 6m×2m.

Machine body

The metal body on this cutter has undergone a 600°C heat treatment, and is cooled inside the furnace for 24 hours. After this is complete, it is processed using a plano-milling machine and welded using carbon dioxide. This ensures it has a high strength and a 20 year service life.

Cypcut FSCUT 1000 Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation;

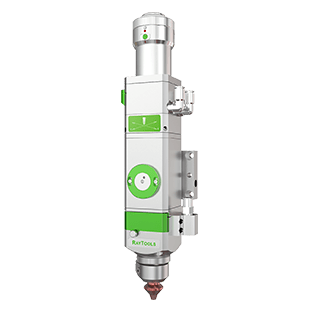

Raytools laser head

High Performance/Cost：The opt and affordable designed for low-mid power level laser cutting machine of 1500W and below.
High Adaptability：With QBH, QCS and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices.
Excellent Design：Optimized optical configuration, smooth and efficient air flow design significantly improve cutting quality and efficiency.
Rugged Structure：Light weight and compact size, reduce the payload requirement of the machine and improve the cutting speed and quality.
