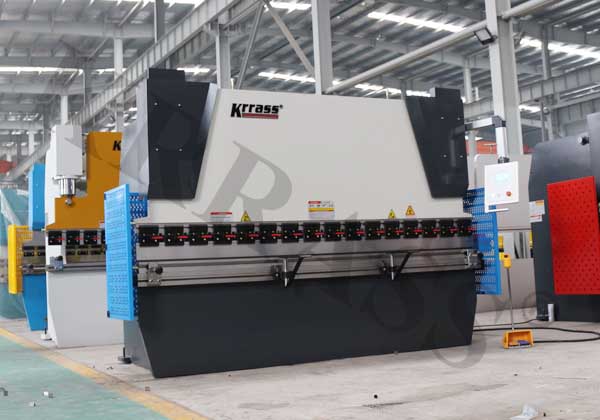

CNC Press Brake CYBELEC 8

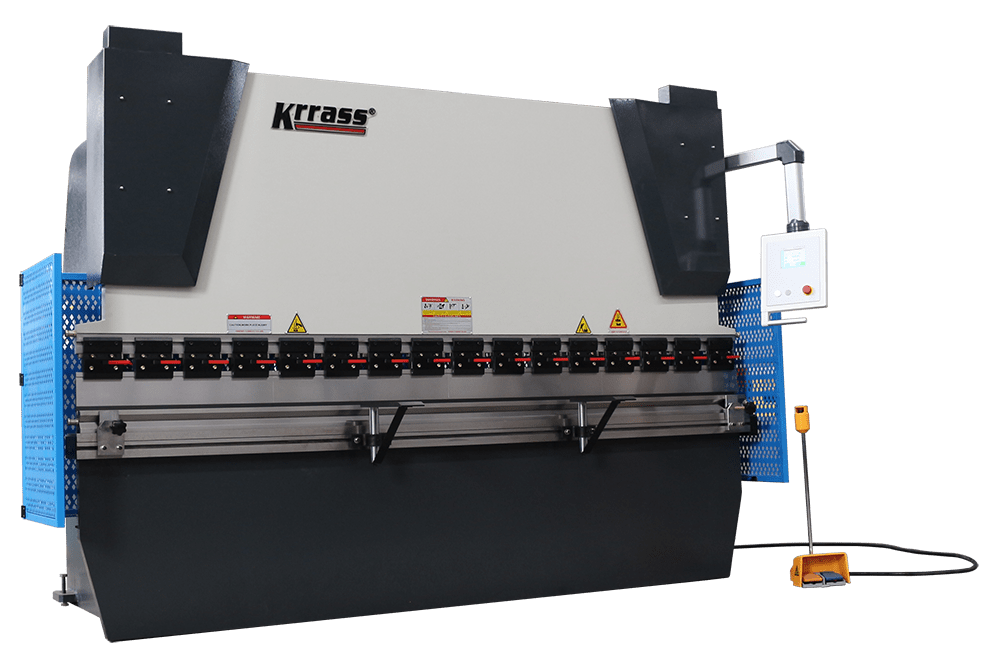

General Features

Overall welding the front workbench vertical plates and machine frame ensures there are no seam between vertical plates and bilateral wall plates.

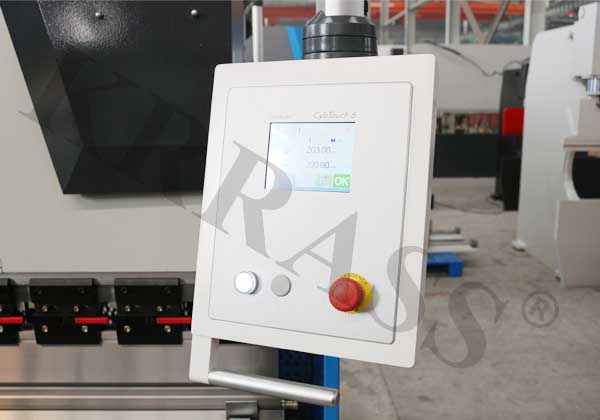

Adopt Estun E300 controller cantilever referring to man-machine engineering design, with simple CNC operation surface, improving the operational accuracy and comfortability.
Left and right safety fences are used to protect the worker’s safety.

Min Features:

1.Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical crowning device, ensuring bending precision.
2.Hydraulic synchronous control and Estun CNC programmable controller guarantee precise repeatability and easy use.
3. Integrated hydraulic system (Germany Bosch Rexroth) can automatically switch to slow bending in quick way.
4. X ,Y‐axis realize accurate positioning function through CNC E300 controller programming ,servo drive and servo motor.
5. Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
6. Optimal parameter ratio and optimal core configuration guarantee stable performance and more convenient operation.
7.WC67K standard single-axis back gauge system, single-axis bending angle system and V-axis compensation function any type irregular work pieces can be done with suitable die.

Standard Configuration

Estun E300 double-servo controller
Controller controls and adjusts Y‐axis and X‐axis
Servo drive and control positioning of X-axis and Y-axis
Use HIWIN ball screw and linear guide rail, accuracy 0.05mm
Front material supporter
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection

CNC controller

4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
Optional hydraulic or mechanical to control the C-axis.
Program in absolute value or angle.
Materials and die informations are programable.
Language setting and unit setting.

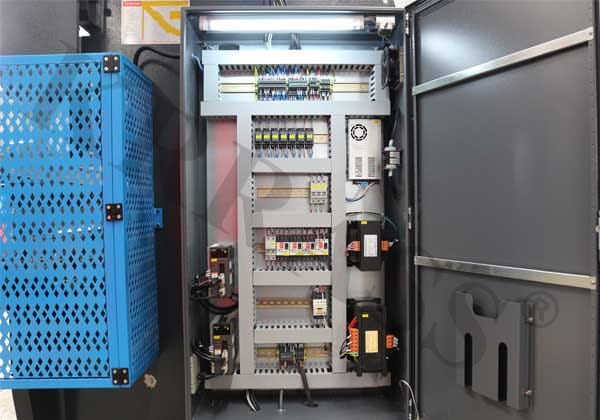

Electrical box

Use France Schneider electric with high reliability and Estun servo drive to improve the positioning accuracy of X , Y axes.
Electric cabinet with door control power and cooling function.

Main motor

Use Siemens motor to ensure the machine service life and lower the working noise.

Oil Pump

Use USA SUNNY oil pump to ensure the pump service life and lower the working noise.

backgauge

High-precision backgauge device, Taiwan HIWIN ball screw and linear guide rail.

X axis beam

Backgauge adopts horizontal shell installation structure with high reliability, and single-shell double linear guide rails with high precision, X-axis drive, CNC automatic controller.

Rear finger

Backgauge X-axis servo motor control, manually adjust R and X axes, and the stopping finger can move along with the double guide rails.

X Axis

X-axis driven by servo motor with high positioning accuracy, unique designed synchronous transmission mechanism, reliable and stable.

Y Axis

Y-axis driven by servo motor to ensure the positioning accuracy, unique designed synchronous transmission mechanism, reliable and stable.

Hydraulic system

Use USA PARKER/ Japan NOK Sealing ring to improve the oil cylinder service life and ensure long term use without leakage.
Germany Bosch Rexroth integrated hydraulic system, hydraulic transmission, balance and reliable, integrated hydraulic system design can significantly minimize the trouble caused by hydraulic oil leakage.

Clamps

Mechanical quick clamps of upper die is more safe when changing the die

Press Brake Die

Multi-V bottom die with different opening and dimensions accessible, die-changing is convenient, and can meet general plate processing demands with high cost performance.
The Press Brake dies are made by 42CrMo steel, and the temperature of heat treatment up to 42°, ensuring the dies service life.

Workbench

With double T-shaped channel, the workbench is convenient for segmented die installation.
Movable fine polished workbench ensures the workbench surface flatness.

Front supporter

Front supporter, simple structure, powerful function, supporting up/down adjustment, and can move along T-shaped channel in horizontal direction.

Foot pedal switch

South Korea KACON pedal switch, improving the service life and operational sensitivity.

Potional

Mechanical Crowning
Front Photoelectric Protection
Back Photoelectric Protection

Manual crowning

Photoelectric protection

Potional Segment Die

Press Brake segmented die or others are avaliable for your choice

Gooseneck die

Acute Knife

Double V Die

Multi-V Die

Technical Parameters

Model	Bending Pressure (KN)	Bendling Length (mm)	Uprights Distance (mm)	Throat Depth (mm)	Slider Stroke (mm)	Max. Opening Height (mm)	Max. X-axis Distance (mm)	Main Motor (KW)	LengthWidthHeight (mm)	Weight (kg)
30T/1600	300	1600	950	230	100	320	300	3	180012001620	2000
40T/1600	400	1600	950	230	100	320	300	3	180012001820	2500
40T/2200	400	2200	1850	230	100	320	500	5.5	220012001900	2750
40T/2500	400	2500	1850	230	100	320	500	5.5	250012001900	3000
50T/2500	500	2500	1850	230	100	320	500	5.5	250012002000	3400
63T/2500	630	2500	1900	250	100	320	500	5.5	250013002210	4000
63T/3200	630	3200	2560	250	100	320	500	5.5	320013002210	4800
80T/2500	800	2500	1990	300	100	320	500	7.5	250014002300	5000
80T/3200	800	3200	2560	320	100	350	500	7.5	320015002300	6000
80T/4000	800	4000	3200	320	100	350	500	7.5	400015002400	7000
100T/2500	1000	2500	1990	320	120	350	500	7.5	250016002400	6000
100T/3200	1000	3200	2600	320	150	400	500	7.5	320016002600	6800
100T/4000	1000	4000	3200	320	150	400	500	7.5	400016002600	8000
125T/2500	1250	2500	1990	320	150	400	500	11	250016002600	6000
125T/3200	1250	3200	2600	320	150	400	500	11	320016002600	7000
125T/4000	1250	4000	3200	320	150	400	500	11	400016002600	8500
160T/2500	1600	2500	1990	320	200	460	500	11	250017002700	8800
160T/3200	1600	3200	2580	320	200	460	500	11	320017002700	10000
160T/4000	1600	4000	2900	320	200	460	500	11	400017002800	11000
160T/5000	1600	5000	3900	320	200	460	500	11	500019003100	13500
160T/6000	1600	6000	4900	320	200	460	500	11	630019003200	18500
200T/2500	2000	3200	1990	320	200	460	500	11	320019502800	10000
200T/3200	2000	3200	2480	320	200	460	500	11	320019502800	11000
200T/4000	2000	4000	2900	320	200	460	500	11	400019502800	12500
200T/5000	2000	5000	3900	320	200	460	500	11	500019503000	14000
200T/6000	2000	6000	4900	320	200	460	500	11	600019503300	20000
250T/3200	2500	3200	2450	400	250	590	500	18.5	325020003200	18500
250T/4000	2500	4000	2900	400	250	590	500	18.5	400020003400	20000
250T/5000	2500	5000	3900	400	250	590	500	18.5	500020003400	23000
250T/6000	2500	6000	4900	400	250	590	500	18.5	600020003400	27000
300T/3200	3000	3200	2450	400	250	590	500	22	320020003450	20500
300T/4000	3000	4000	2900	400	250	590	500	22	400020003450	22000
300T/5000	3000	5000	3900	400	250	590	500	22	500020003450	25000
300T/6000	3000	6000	4900	400	250	590	500	22	600020003450	28500
400T/3200	4000	3200	2400	400	250	590	500	30	320021803400	22500
400T/4000	4000	4000	2900	400	250	590	500	30	400021803400	25000
400T/5000	4000	5000	3900	400	250	590	500	30	500021803500	29000
400T/6000	4000	6000	4900	400	250	590	500	30	600021803800	34000
500T/4000	5000	4000	2900	400	250	590	500	45	405035003700	36000
500T/5000	5000	5000	3900	400	250	590	500	45	505035003700	42000
500T/6000	5000	6000	4900	400	320	590	500	45	605035003700	54000
