120m/min
Complex-axis running speed
1.2G
Max. acc. speed
±0.03mm/m
Positioning accuracy
±0.02mm
Reposition accuracy
17000kg
Whole machine weight
12000*4300*2500mm
Machine dimensions

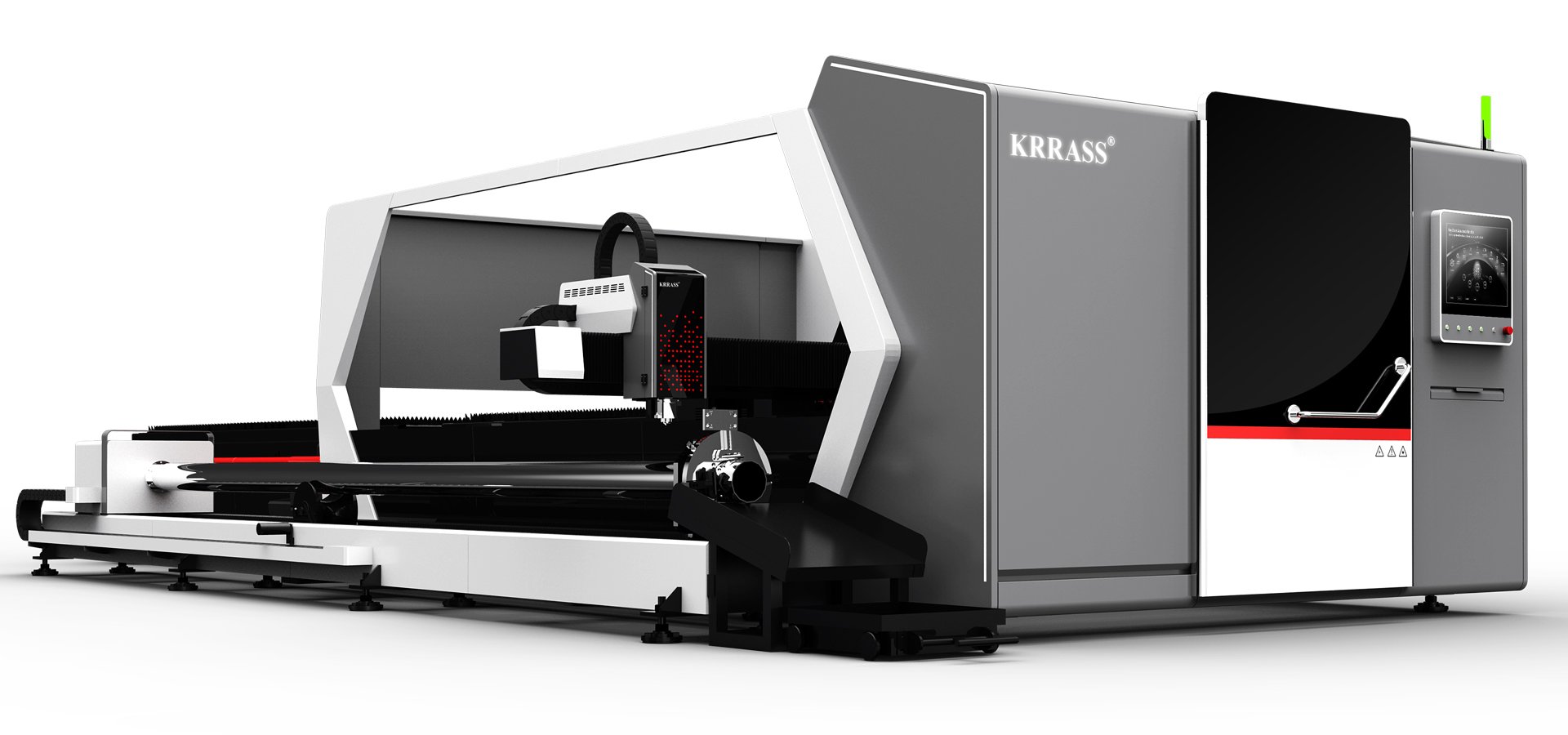

Upper and lower exchangeable table, shorten the standby time, the drawer-type material collecting device allows more convenient collection, effectively improve the efficiency of more than 50%.Equipped with an interchangeable table, the 3015T-22Qfiber laser cutting machine can process both metal sheets and tubes.
Equipped with a high-low exchange platform, this laser cutting machine operates more efficiency due to the short exchange period of only 15 seconds.

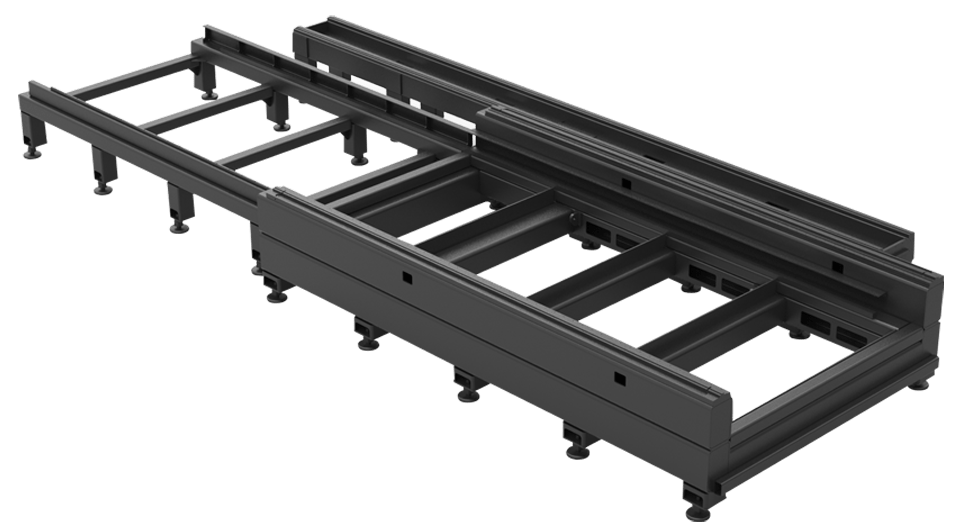

The metal bed on this cutter has undergone a heat treatment of 600°C and is cooled inside the furnace afterwards for 24 hours. After it has cooled, it is processed using a plano milling machine and welded using carbon dioxide. This gives the cutter its strength and service life of 20 years.

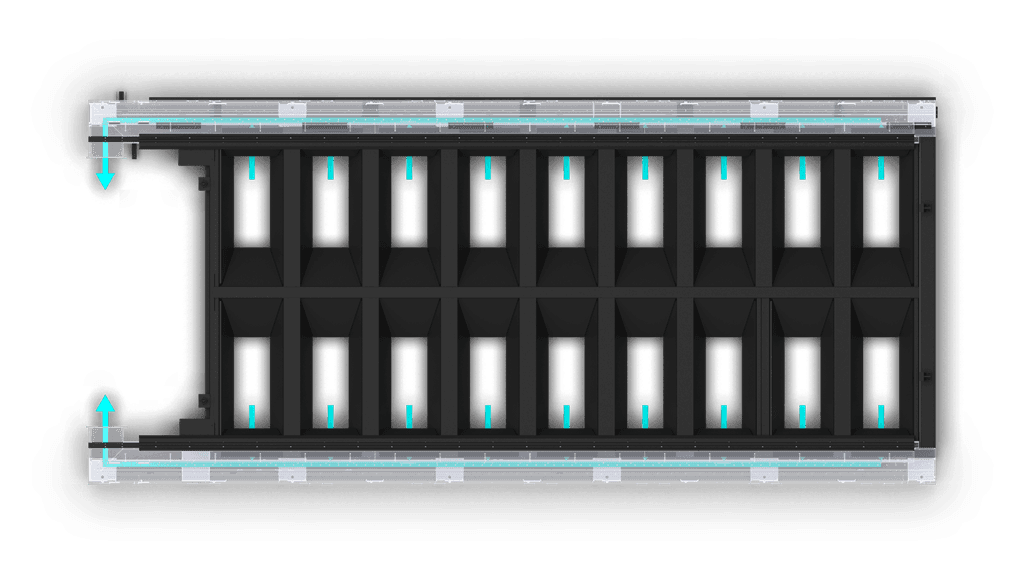

The extraction system is divided into left and right zones, with butterfly valve general controlling concentrated suction, and large-diameter air extraction pipes on both sides to ensure smooth smoke exhausting.
High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation;
High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation;

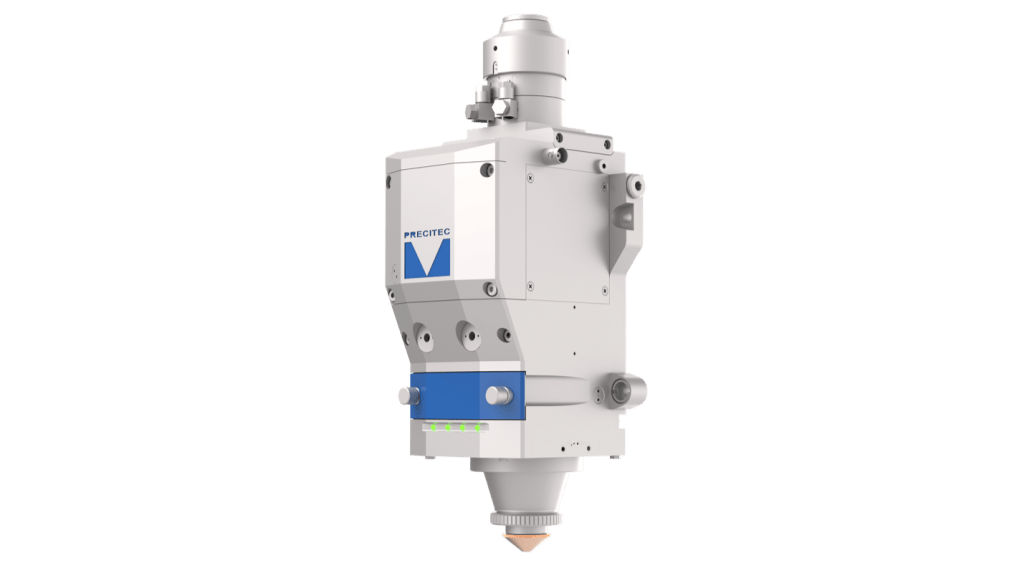

Germany Precitec high-power cutting head, automatic focus adjustment, suitable for a variety of focal length; unnoticeable perforation, flexible cutting, high-speed leapfrog, high cutting efficiency. Real time status monitoring and intelligent malfunction warning.
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
Global real-time feedback
Providing real-time fault analysis and troubleshooting.
The convenience of operation: automatic drift correction function, automatic tube center finding function, very smart, convenient and practical.
