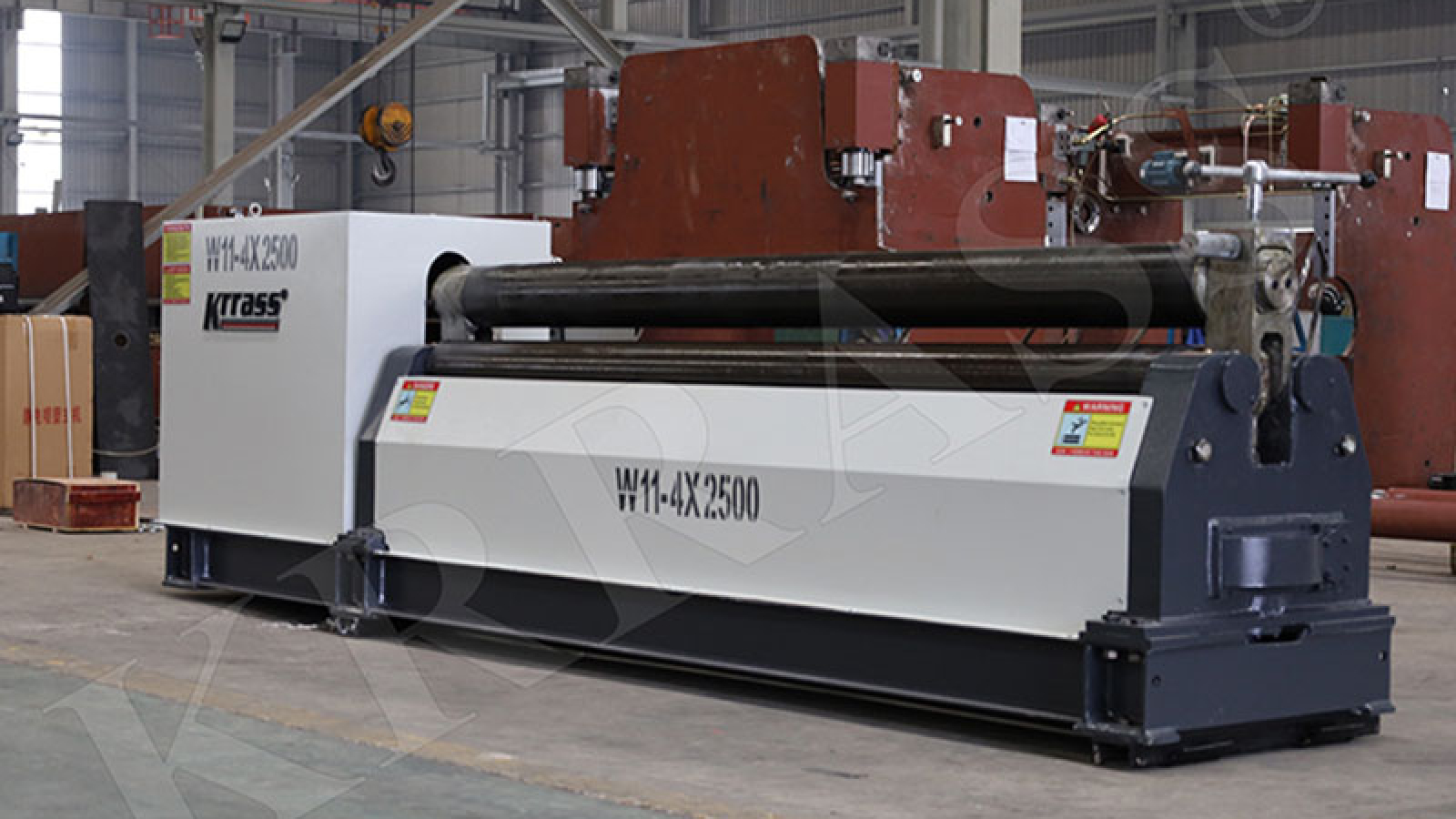

4mm thickness Plate rolling machine ,1.5 meter Plate bending machine
Features
1.European standard design
2.Three-roller symmetric structure, compact, easy operation and maintenance
3.Easy-to-use removable console
4.Two sets of digital output for easy positioning of two lower rollers
5.SAE 1050 quality certificate
Standard configuration
●Easy-to-use removable console
●The upper roller is electrically depressed through the console
●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling
●Ferrules in full circle or varying radiuses can be done easily
●Overload protection
●Two sets of digital output for easy positioning of two lower rollers
●Extended roller shafts for profile and pipe rolling operation
Safety standard
●Safety standards (2006/42 / EC)
●Open the electrical cabinet door to power off
●Domestic pedal switch ( safety grade 4 )
●Body metal safety rail conforms to CE standards
●Safety relay monitors the pedal switch, safety protection
Technical parameters
| Name | Configuration Parameter | W11-4/1500 | |
| Max Plate Thickness | <450N/mm2 | mm | 4 |
| <700N/mm2 | mm | 2.5 | |
| Max Plate Length ( A ) mm 2500 | (A) | mm | 1500 |
| Loaded with minimum volume plate diameter | mm | 300 | |
| Yield Limit | N/mm2 | 245 | |
| Rolling Speed | m/min | 5 | |
| Upper Roller Diameter | mm | 150 | |
| Lower Roller Diameter | mm | 140 | |
| Lower Roller Center Distance | mm | 185 | |
| Main Motor Power | Kw | 4 | |
| Length | (A) | mm | 3050 |
| Width | (B) | mm | 860 |
| Length | (H) | mm | 1070 |
| Weight | Kg | 1700 | |
