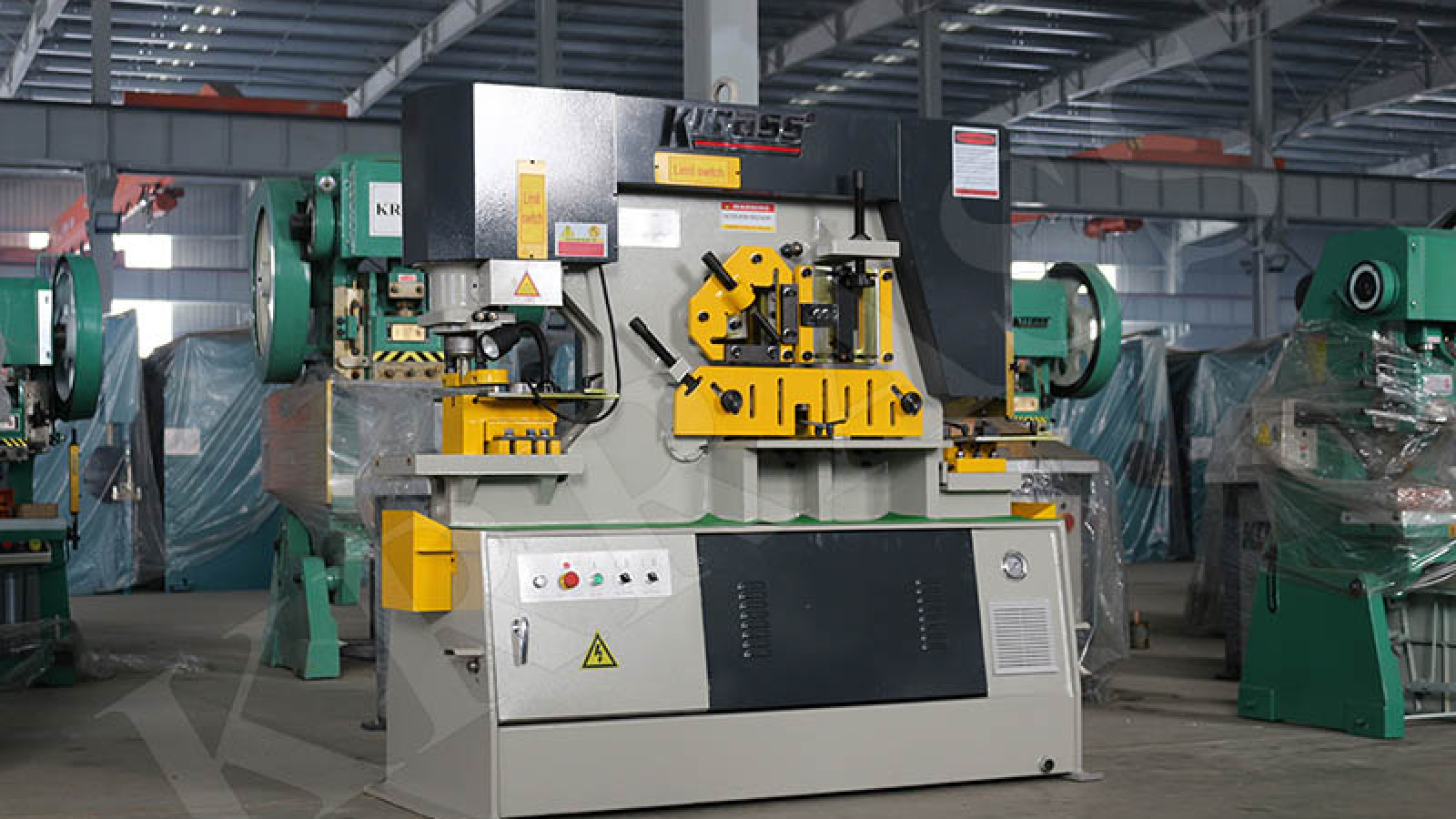

60T Ironworker,Q35Y-16 Hydraulic Ironworker Machine For Sale
In stock,Krrass Q35Y-16 hydraulic ironworker for sale.Any interesting,please free contact us.
Main Function
1)2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.
2)More efficient stroke-control functions of piston rod.
3)Central lubricating system
4)Motor-driven rear stopper
5)Lighting devices for work
6)5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.
Main Configuration
- France Schinerder electrics
- Siemens motor
- US Sunny oil pump
- Germany Rexroth valve block
- South Korea KACON pedal switch
Parameter
Technical Specifications Q35Y-16
Punching Pressure(T) 60T
Depth of throat(mm) 300
| Features |  | punching holes | Diameter*Max. thickness | mm | 25×16 |
| Diameter*thickness | mm | 25×16 | |||
| Max.diameter | mm | 25 | |||
| Stroke | mm | 80 | |||
| Work stroke | mm | ×20 | |||
| Throat Depth | mm | 300 | |||
 | Steel bar cutting | Round steel | mm | 45 | |
| Square steel | mm | 40×40 | |||
 | Angel cutting | Angle cutting | mm | 125×125×12 | |
| Angle | °Dgree | 60×60×8 | |||
| Edged surface | mm | 5.5 | |||
 | Slotting | Thickness | mm | 126 | |
| Width | mm | 53 | |||
| Depth | mm | ||||
 | U-shaped and I-beam cutting | mm | 125×125×12 | ||
| T-section cutting | mm | 70×70×10 | |||
| I-beam cutting | mm | 126×74×5 | |||
 | V-slotting die | mm | 600 | ||
| V-bending | mm | 10 | |||
| Pressure | kn | 600 | |||
| Motor Power | kw | 5.5 | |||
| Weight | kg | 1900 | |||
| Machine outline size(LXWXH) | mm | 1640X730X1770 | |||
