6mm Plate bending machine,6mm Sheet metal bending machine for sale

2021-03-31

by [email protected] with No Comment Machine Stock

6mm Plate bending machine,6mm Sheet metal bending machine for sale

Description:

The W11-6X2500 plate rolling machine is three-roller symmetric structure; driven by screw lever and turbine worm, the upper roller moves in vertical direction in the center symmetrical position between the lower two rollers; As the main drive roller for rotary motion, two lower rollers are engaged with the output gear of the reducer to provide torque for rolling plate. The machine is compact, easy operation and maintenance; besides, the roller is suitable for installation of profile dies for easy rolling of various profiles.

Standard configuration:

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation

Technical parameter:

Name	Configuration Parameter		W11-6/2500
Max Plate Thickness	<450N/mm2	mm	6
Max Plate Thickness	<700N/mm2	mm	4
Max Plate Length	( A )	mm	2500
Loaded with minimum volume plate diameter	Mm		380
Yield Limit	N/mm2		245
Rolling Speed	m/min		4.5
Upper Roller Diameter	mm		180
Lower Roller Diameter	mm		170
Lower Roller Center Distance	mm		260
Main Motor Power	kw		5.5
Length	( A )	mm	4300
Width	( B)	mm	910
Length	( H )	mm	1150
Weight	kg		2600

250ton Ironworker,Q35Y-50 Ironworker Punching Machine Sells Directly

2021-03-25

by [email protected] with No Comment Machine Stock

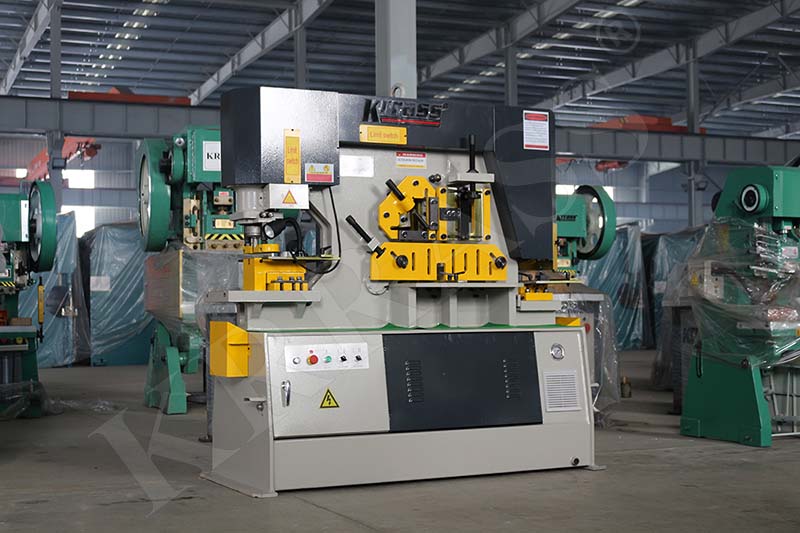

250ton Ironworker,Q35Y-50 Ironworker Punching Machine Sells Directly

Main Functions

1)2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.
2)More efficient stroke-control functions of piston rod.
3)Central lubricating system

4)Motor-driven rear stopper

5)Lighting devices for work
6)5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.

Main Configurations

Electrics	Schneider – France
Main motor	Siemens – Germany
Oil pump	SUNNY – USA
Valve block	Rexroth – Germany
Pedal switch	KACON – South Korea
Wind-cooler for oil	China
Sealing ring	Parker – USA
Oil pipe connector	pressure hose – Germany
Safety guard	KRRASS

Techinical Parameters

Technical Specifications	Q35Y-50
Punching Pressure(T)	250T
Depth of throat(mm)	600

Features	punching holes	Diameter*Max. thickness	mm	40X40
		Diameter*thickness	mm	40X40
		Max.diameter	mm	40
		Stroke	mm	80
		Work stroke	mm	X40
		Throat Depth	mm	600
	Steel bar cutting	Round steel	mm	80
	Steel bar cutting	Square steel	mm	65X65
	Angel cutting	Angle cutting	mm	200X200X20
		Angle	°Dgree	120X120X10
		Edged surface	mm	12
	Slotting	Thickness	mm	320
		Width	mm	92
		Depth	mm
	U-shaped and I-beam cutting		mm	180X180X16
	T-section cutting		mm	80X80X10
	I-beam cutting		mm	320X130X10
	V-slotting die		mm	600
	V-bending		mm	40
Pressure			kn	2500
Motor Power			kw	18.5
Weight			kg	14500
Machine outline size(LXWXH)			mm	3000X1440X2450

200ton Ironworker,Q35Y-40 Hydraulic Ironworker Machine Supplier from China

2021-03-24

by [email protected] with No Comment Machine Stock

200ton Ironworker,Q35Y-40 Hydraulic Ironworker Machine Supplier from China

Main functions

1)2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.

2)More efficient stroke-control functions of piston rod.

3)Central lubricating system

4)Motor-driven rear stopper

5)Lighting devices for work

6)5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.]

Electrics	Schneider – France
Main motor	Siemens – Germany
Oil pump	SUNNY – USA
Valve block	Rexroth – Germany
Pedal switch	KACON – South Korea
Wind-cooler for oil	China
Sealing ring	Parker – USA
Oil pipe connector	pressure hose – Germany
Safety guard	KRRASS

Technical Parameters

Technical Specifications Q35Y-40
Punching Pressure(T) 200T
Depth of throat(mm) 600s

Features	punching holes	Diameter*Max. thickness	mm	40X35
		Diameter*thickness	mm	40X35
		Max.diameter	mm	40
		Stroke	mm	80
		Work stroke	mm	X35
		Throat Depth	mm	600
	Steel bar cutting	Round steel	mm	70
	Steel bar cutting	Square steel	mm	60X60
	Angel cutting	Angle cutting	mm	200X200X18
		Angle	°Dgree	100X100X10
		Edged surface	mm	12
	Slotting	Thickness	mm	300
		Width	mm	89
		Depth	mm
	U-shaped and I-beam cutting		mm	160X160X14
	T-section cutting		mm	80X80X10
	I-beam cutting		mm	300X126X11
	V-slotting die		mm	600
	V-bending		mm	33
Pressure			kn	2000
Motor Power			kw	18.5
Weight			kg	11000
Machine outline size(LXWXH)			mm	2970X1240X2350

160ton Ironworker,Q35Y-30 Hydraulic Ironworker Machine for Metal Fabrication

2021-03-22

by [email protected] with No Comment Machine Stock
