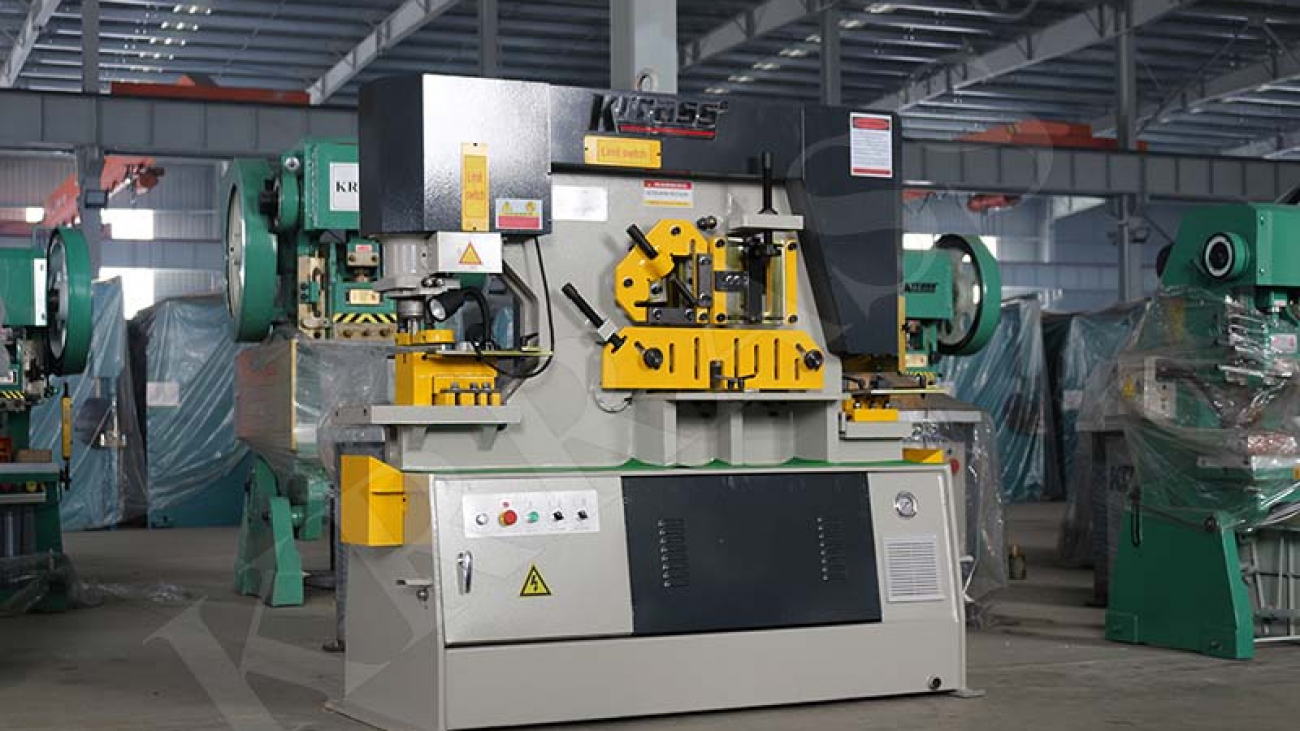

Hydraulic ironworkers Five benefits in fabrication work

Hydraulic ironworkers Five benefits in fabrication work



Hydraulic Ironworkers are a valuable tool in any Fabrication shop. They are an easy- to- use machine that tackles a number of different tasks. These three-in-one machines combine the functions of punching, notching and shearing. They vary in size and capacity, and are available as single or dual operator systems. Their convenience, ease of use and function has made them a staple in many fabrication environments.Ironworkers are built to handle jobs that fabricators and manufacturers regularly face. They are three-in-one machines that work as shearing, notching, and punching.

5 benefits of hydraulic ironworker machine

1. Time Saving

By having the ability to perform multiple processes on one machine, ironworkers save time, increasing efficiency. Instead of using a different machine for each function, with an Ironworker an operator can continue doing multiple processes in the same location. Ironworkers also can come with multiple tooling options that can be quickly changed, resulting in time saved.

2. Space Saving

Ironworkers combine the functions of three machines in one; Punching, shearing and notching. Instead of having three machines for three specific tasks, iron workers allow you to complete all these processes in one location. Having one machine instead of three creates valuable space in a fabrication shop.

3. Waste Reducing

An ironworker will allow the operator to get closer to the work whether it is punching, shearing, notching or a forming job, thereby improving the precision and the quality of the work. Unlike traditional punching, notching, and shearing techniques which yield a lot more waste, an ironworker can reduce this problem.

4. Safety First

Ironworkers offer a safer operation then some of the machines they replace. Most Ironworkers today come with some guarding around them to prevent accidents.

5. Cost Saving

Ironworkers are a cost saving alternative to other machines for a host of reasons. It is less expensive to purchase one Ironworker Machine then it is to purchase the three machines it is replacing. Ironworkers can also save money as a result of their smaller space requirement, faster operation speeds and waste saving benefits.

The benefits of Ironworker make them ideal for both smaller shops with fewer workers as well as for busy shops that need every productivity advantage they can get. For fabricating operations of all sizes, an ironworker machine can be a valuable asset that yields both short and long term benefits.

6mm thickness plate rolling machine

6mm thickness Plate rolling machine,3 meter Plate bending machine

6mm thickness Plate rolling machine ,3 meter Plate bending machine

Description

W11 6×3000 plate rolling machine is three-roller symmetrical structure; the upper roller is driven by the lead screw and the worm gear to move in the vertical direction at the center symmetrical position between the lower two rollers. As the main driving roller for rotating motion, the two lower rollers mesh with the output gear of the reducer to provide torque for the rolling plate. The machine has a compact structure and is easy to operate and maintain; in addition, the roller is also suitable for installing profile molds to facilitate rolling of various profiles.

Features

1.European standard design

2.Three-roller symmetric structure, compact, easy operation and maintenance

3.Easy-to-use removable console

4.Two sets of digital output for easy positioning of two lower rollers

5.SAE 1050 quality certificate



Standard configuration

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Safety standard

●Safety standards (2006/42 / EC)

●Open the electrical cabinet door to power off

●Domestic pedal switch ( safety grade 4 )

●Body metal safety rail conforms to CE standards

●Safety relay monitors the pedal switch, safety protection



Technical parameters

NameConfiguration ParameterW11-6/1500
Max Plate Thickness<450N/mm2mm6
<700N/mm2mm4
Max Plate Length ( A ) mm 2500(A)mm1500
Loaded with minimum volume plate diametermm380
Yield LimitN/mm2245
Rolling Speedm/min5
Upper Roller Diametermm160
Lower Roller Diametermm150
Lower Roller Center Distancemm220
Main Motor PowerKw4
Length(A)mm3050
Width(B)mm750
Length(H)mm1200
WeightKg2200
6mm thickness plate bending machine

6mm thickness Plate bending machine ,2 meter sheet metal bending machine

6mm thickness Plate bending machine ,2 meter sheet metal bending machine



Features

1.European standard design

2.Three-roller symmetric structure, compact, easy operation and maintenance

3.Easy-to-use removable console

4.Two sets of digital output for easy positioning of two lower rollers

5.SAE 1050 quality certificate



Standard configuration

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Safety standard

●Safety standards (2006/42 / EC)

●Open the electrical cabinet door to power off

●Domestic pedal switch ( safety grade 4 )

●Body metal safety rail conforms to CE standards

●Safety relay monitors the pedal switch, safety protection



Technical parameters

NameConfiguration ParameterW11-6/1500
Max Plate Thickness<450N/mm2mm6
<700N/mm2mm4
Max Plate Length ( A ) mm 2500(A)mm1500
Loaded with minimum volume plate diametermm380
Yield LimitN/mm2245
Rolling Speedm/min5
Upper Roller Diametermm160
Lower Roller Diametermm150
Lower Roller Center Distancemm220
Main Motor PowerKw4
Length(A)mm3050
Width(B)mm750
Length(H)mm1200
WeightKg2200
6mm thickness plate rolling machine

6mm thickness Plate rolling machine ,1.5 meter Plate bending machine

6mm thickness Plate rolling machine ,1.5 meter Plate bending machine



Features

1.European standard design

2.Three-roller symmetric structure, compact, easy operation and maintenance

3.Easy-to-use removable console

4.Two sets of digital output for easy positioning of two lower rollers

5.SAE 1050 quality certificate



Standard configuration

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Safety standard

●Safety standards (2006/42 / EC)

●Open the electrical cabinet door to power off

●Domestic pedal switch ( safety grade 4 )

●Body metal safety rail conforms to CE standards

●Safety relay monitors the pedal switch, safety protection



Technical parameters

NameConfiguration ParameterW11-6/1500
Max Plate Thickness<450N/mm2mm6
<700N/mm2mm4
Max Plate Length ( A ) mm 2500(A)mm1500
Loaded with minimum volume plate diametermm380
Yield LimitN/mm2245
Rolling Speedm/min5
Upper Roller Diametermm160
Lower Roller Diametermm150
Lower Roller Center Distancemm220
Main Motor PowerKw4
Length(A)mm3050
Width(B)mm750
Length(H)mm1200
WeightKg2200



4mm thickness sheet metal rolling machine

4mm thickness Sheet metal rolling machine,2 meter Plate rolling machine

4mm thickness Sheet metal rolling machine,2 meter Plate rolling machine



Features

1.European standard design

2.Three-roller symmetric structure, compact, easy operation and maintenance

3.Easy-to-use removable console

4.Two sets of digital output for easy positioning of two lower rollers

5.SAE 1050 quality certificate



Standard configuration

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Safety standard

●Safety standards (2006/42 / EC)

●Open the electrical cabinet door to power off

●Domestic pedal switch ( safety grade 4 )

●Body metal safety rail conforms to CE standards

●Safety relay monitors the pedal switch, safety protection



Technical parameters

NameConfiguration ParameterW11-4/1500
Max Plate Thickness<450N/mm2mm4
<700N/mm2mm2.5
Max Plate Length ( A ) mm 2500(A)mm1500
Loaded with minimum volume plate diametermm300
Yield LimitN/mm2245
Rolling Speedm/min5
Upper Roller Diametermm150
Lower Roller Diametermm140
Lower Roller Center Distancemm185
Main Motor PowerKw4
Length(A)mm3050
Width(B)mm860
Length(H)mm1070
WeightKg1700
4mm thickness plate rolling machine

4mm thickness Plate rolling machine ,1.5 meter Plate bending machine

4mm thickness Plate rolling machine ,1.5 meter Plate bending machine



Features

1.European standard design

2.Three-roller symmetric structure, compact, easy operation and maintenance

3.Easy-to-use removable console

4.Two sets of digital output for easy positioning of two lower rollers

5.SAE 1050 quality certificate



Standard configuration

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Safety standard

●Safety standards (2006/42 / EC)

●Open the electrical cabinet door to power off

●Domestic pedal switch ( safety grade 4 )

●Body metal safety rail conforms to CE standards

●Safety relay monitors the pedal switch, safety protection



Technical parameters

NameConfiguration ParameterW11-4/1500
Max Plate Thickness<450N/mm2mm4
<700N/mm2mm2.5
Max Plate Length ( A ) mm 2500(A)mm1500
Loaded with minimum volume plate diametermm300
Yield LimitN/mm2245
Rolling Speedm/min5
Upper Roller Diametermm150
Lower Roller Diametermm140
Lower Roller Center Distancemm185
Main Motor PowerKw4
Length(A)mm3050
Width(B)mm860
Length(H)mm1070
WeightKg1700



12mm sheet metal bending machine

12mm Sheet metal bending machine,Plate bending machine for sale

12mm Sheet metal bending machine,Plate bending machine for sale

Features

1.European standard design

2.Three-roller symmetric structure, compact, easy operation and maintenance

3.Easy-to-use removable console

4.Two sets of digital output for easy positioning of two lower rollers

5.SAE 1050 quality certificate

Standard configuration

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Techinial parameters

NameConfiguration ParameterW11-12/2500
Max Plate Thickness<450N/mm2mm12
<700N/mm2mm8
Max Plate Length ( A ) mm 2500(A)mm2500
Loaded with minimum volume plate diametermm600
Yield LimitN/mm2245
Rolling Speedm/min4.5
Upper Roller Diametermm260
Lower Roller Diametermm220
Lower Roller Center Distancemm320
Main Motor PowerKw11
Length(A)mm4300
Width(B)mm1285
Length(H)mm1400
WeightKg5300



8mm sheet metal rolling machine for sale

8mm Sheet metal rolling machine,bending 8mm Thickness Sheet metal roller for sale

8mm Sheet metal rolling machine,bending 8mm Thickness Sheet metal roller for sale

Description:

W11 8×2500 sheet metal rolling machine is three-roller symmetrical structure; the upper roller is driven by the lead screw and the worm gear to move in the vertical direction at the center symmetrical position between the lower two rollers. As the main driving roller for rotating motion, the two lower rollers mesh with the output gear of the reducer to provide torque for the rolling plate. The machine has a compact structure and is easy to operate and maintain; in addition, the roller is also suitable for installing profile molds to facilitate rolling of various profiles.



Standard configuration:

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

● Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Technical parameters:

NameConfiguration ParameterW11-8/2500
Max Plate Thickness<450N/mm2mm8
<700N/mm2mm5
Max Plate Length( A )mm2500
Loaded with minimum volume plate diameterMm550
Yield LimitN/mm2245
Rolling Speedm/min4.5
Upper Roller Diametermm240
Lower Roller Diametermm180
Lower Roller Center Distancemm280
Main Motor Powerkw7.5
Length( A )mm4300
Width( B)mm910
Length( H )mm1250
Weightkg4000
6mm plate rolling machine

6mm Plate bending machine,6mm Sheet metal bending machine for sale

6mm Plate bending machine,6mm Sheet metal bending machine for sale

Description:

The W11-6X2500 plate rolling machine is three-roller symmetric structure; driven by screw lever and turbine worm, the upper roller moves in vertical direction in the center symmetrical position between the lower two rollers; As the main drive roller for rotary motion, two lower rollers are engaged with the output gear of the reducer to provide torque for rolling plate. The machine is compact, easy operation and maintenance; besides, the roller is suitable for installation of profile dies for easy rolling of various profiles.



Standard configuration:

●Easy-to-use removable console

●The upper roller is electrically depressed through the console

●Suitable for thin and heavy plate, aluminum or stainless steel sheet rolling

●Ferrules in full circle or varying radiuses can be done easily

●Overload protection

●Two sets of digital output for easy positioning of two lower rollers

●Extended roller shafts for profile and pipe rolling operation



Technical parameter:

NameConfiguration ParameterW11-6/2500
Max Plate Thickness<450N/mm2mm6
<700N/mm2mm4
Max Plate Length( A )mm2500
Loaded with minimum volume plate diameterMm380
Yield LimitN/mm2245
Rolling Speedm/min4.5
Upper Roller Diametermm180
Lower Roller Diametermm170
Lower Roller Center Distancemm260
Main Motor Powerkw5.5
Length( A )mm4300
Width( B)mm910
Length( H )mm1150
Weightkg2600



200ton Hydraulic Ironworker for sale

250ton Ironworker,Q35Y-50 Ironworker Punching Machine Sells Directly

250ton Ironworker,Q35Y-50 Ironworker Punching Machine Sells Directly

Main Functions

1)2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.
2)More efficient stroke-control functions of piston rod.
3)Central lubricating system

4)Motor-driven rear stopper

5)Lighting devices for work
6)5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.



Main Configurations



ElectricsSchneider – France
Main motorSiemens – Germany
Oil pumpSUNNY – USA
Valve blockRexroth – Germany
Pedal switchKACON – South Korea
Wind-cooler for oilChina
Sealing ringParker – USA
Oil pipe connectorpressure hose – Germany
Safety guardKRRASS

Techinical Parameters



Technical SpecificationsQ35Y-50
Punching Pressure(T)250T
Depth of throat(mm)600
Featurespunching holesDiameter*Max. thicknessmm40X40
Diameter*thicknessmm40X40
Max.diametermm40
Strokemm80
Work strokemmX40
Throat Depthmm600
Steel bar cuttingRound steelmm80
Square steelmm65X65
Angel cuttingAngle cuttingmm200X200X20
Angle°Dgree120X120X10
Edged surfacemm12
SlottingThicknessmm320
Widthmm92
Depthmm
         U-shaped and I-beam cuttingmm180X180X16
T-section cuttingmm80X80X10
I-beam cuttingmm320X130X10
V-slotting diemm600
V-bendingmm40
Pressurekn2500
Motor Powerkw18.5
Weightkg14500
Machine outline size(LXWXH)mm3000X1440X2450
